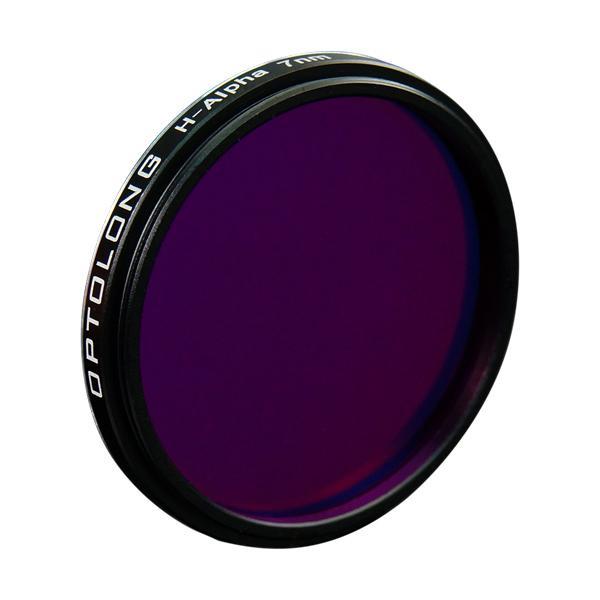

Optolong 2" H-Alpha 7nm Filter

ITEM #
OL-HA-2



  • H-alpha 7nm 2" Filter
  • A very narrow emission-line filter
  • Permits a 7nm bandwidth of light (focused on the 656nm wavelength) through
  • Blocks transmission of contrast-killing light pollution wavelengths





  • Sale
  • Regular price $259.00

More on the Way in 14 - 28 Business Days

Free Shipping
Add to Wishlist
Already have gear? Trade it in for cash or new equipment.

Accessories Added

OPT Telescope Expert

Want Help?

Ask Our Telescope Experts

1.800.483.6287

Optolong 2" H-Alpha 7nm Filter

The H-alpha 7 nm filter is the most popular narrowband filter allowing 7 nm bandwidth of light centered on a wavelength of 656 nm through, and reducing the transmission of certain wavelengths of light, specifically those produced by artificial light including mercury vapor, and both high and low pressure sodium vapor lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow).



Main Use and Performance

  • Suitable for viewing on faint emission nebula of H-alpha line in full moonlight or in severe light pollution
  • Hubble look of images can be made by the combination of H-alpha, OIII-CCD, and SII-CCD, such as the famous “Pillars of Creation” (M16 Eagle Nebula)
  • Narrowband imaging with SHO set (H-alpha, OIII-CCD, and SII-CCD) can be done with the moon up in heavy light pollution, so your equipment is not sitting dormant for several weeks
  • H-alpha filter is the first narrowband addition to LRGB set for most imagers who blend a black-and-white Ha image into RGB data to enhance structural detail while maintaining a natural look
  • Narrowband filter does not eliminate the effects of light pollution or increase the object’s brightness. In many cases, they increase the contrast between nebula and night sky, not brightening the nebula.

This ultra narrowband 7 nm H-alpha filter is intended to be utilized in color filter wheels that accept 2" filter sizes.

WARNING: The filters of Optolong are not designed for sun observation. DO NOT LOOK AT THE SUN WITH OPTOLONG FILTERS. You would be BLIND if you fail to observe the warning.



Technical Data

  • Technical Data Technical Data
  • Schott substrate material
  • Thickness 2mm
  • Surface Quality: 60/40 (Refer to MIL-O-13830)
  • Fine-optically polished to ensure accurate 1/4 wavefront and <30 seconds parallelism over both surfaces
  • 80-percent transmission at the h-alpha line 656 nm infrared wavelength 700 to 1100 nm cut-off
  • 0.1-percent transmission of off-band, specifically major emission lines artificial light pollution (i.e. Na 589 nm, Hg 435 nm, and 578 nm). Transmission of 0.1-percent is equivalent to OD3 (Optical Density), and high optical density value indicates very low transmission, and low optical density indicates high transmission.



Coating Parameter

  • Non-cementing optical substrate coating
  • Electron-beam gun evaporation with low Ion-assisted deposition coating technology for durability and resistance to scratching, as well  as stability on CWL (central wavelength) no deviation affected by temperature change
  • Planetary rotation system offers precision and homogeneity of coatings ensuring high value on the transmission of pass-band and Optical density of off-band



Filter Cell:

  • Ultra-thin filter cell minimize vignetting by maximizing possible clear aperture (clear aperture is 45mm)
  • Aero-metal Material/ Precise CNC Machining/ Sand Blasting Process/ Black Anodized Finish/ Extinction Treatment to Prevent Reflection/ Laser Engraving No Fading



    SPECIFICATIONS

    Bandpass7nm
    Filter ShapeRound
    Filter Thickness2mm
    Filter TypeH Alpha
    Free ShippingYes
    Size2"
