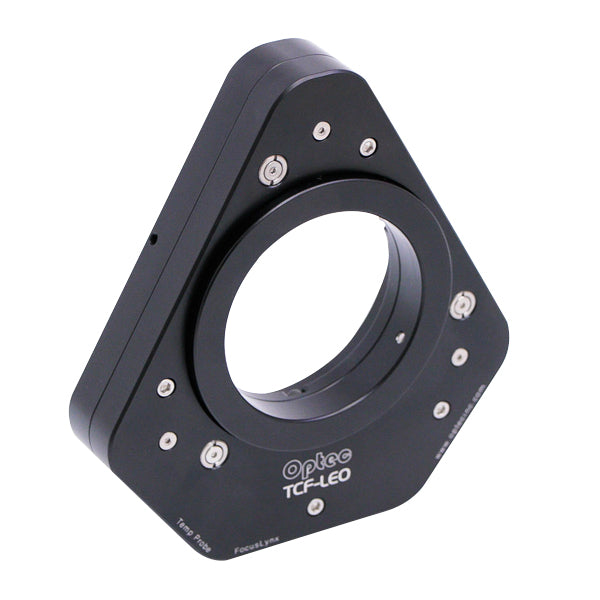

Optec TCF- Leo Low-Profile Temperature Compensating Focuser

Brand: Optec

SKU : OP-19740

- Read
Looking for a Optec TCF- Leo Low-Profile Temperature Compensating Focuser? Shop this product at Agena Astro by clicking the SHOP NOW button!
Add to Wishlist

Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

Product Details

  • Optec has developed a robust low-profile 3-inch focuser for telescope installations where back-focus is scarce. With the width of 1¼ inches, the TCF-Leo provides a unique focusing solution for telescopes with limited flange-to-focus distances. Included withe every TCF- Leo is the proven FocusLynx control system which can be expanded to provide control for a second focuser. The FocusLynx system includes optional 802.11 WiFi and Hand Control accessories.The TCF-Leo was designed to fit between the lock and focus knobs of a Celestron EdgeHD C-11 telescope OTA. For owners of the EdgeHD Celestron C1400 telescopes, Optec offers a set of replacement knobs for the original lock knobs which provide clearance for the TCF-Leo.This focuser uses standard Optec interfaces on both the telescope and camera side making nearly any telescope imaging system to be configured.

  • specifications

    Alternative PowerField battery voltage (13.8VDC) with optional automotive cigarette lighter plug
    Camera Side MountOPTEC 3000 3" drawtube
    Control SystemFocusLynx Controller
    Focuser 1 Connection RJ45 socket for standard Cat 5e or Cat 6 to focuser
    Focuser 2 ConnectionOptional second stepper board for RJ45 socket
    Focuser Midpoint1.425" (36.2mm)
    Input Power12VDC univeral power supply (110 to 230VAC input)
    Overall Thickness1.25" (31.8mm) to 1.6" (40.6mm)
    Second StepperOptional plug in daughter board
    Software DriversASCOM local server and X2 native drivers for TheSky X
    Step Resolution0.08 microns
    Stepper Motor Controlbipolar and unipolar stepper motors
    Total Step Travel112000 steps
    Weight1lb 14 oz (0.85 kg)
    WiFi ConnectionOptional 802.11b/g compatible
