Optec RJ-12 Reverse Cable - 6'

ITEM #
OP-17671
  • Sale
  • Regular price $10.00
  • Optec RJ-12 Reverse Cable - 6'

    • Sale
    • Regular price $10.00
    • ITEM #
      OP-17671

    • 2 available

    2

    Features

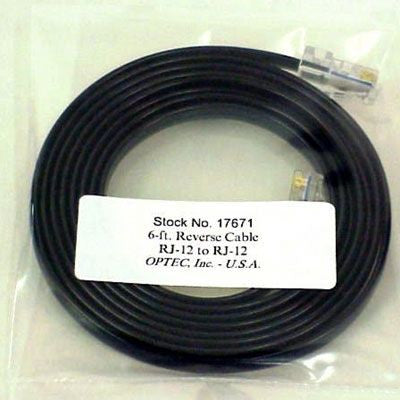

    Optec RJ-12 Reverse Cable - 6'

    Optec RJ-12 Reverse Cable - 6'

    For use with PC Serial Port Converter (17495) or PC Parallel Port Converter (17496). Cable is RJ-12 to RJ-12 and is 6' long.

    When Using the Pyxis Camera Rotator...

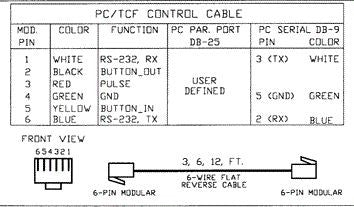

    To attach the Pyxis to the COM (RS-232 serial) port of a computer requires a special cable. These cables are flat 6-wire stranded with RJ-12 modular connectors on both ends. They are typically refered to as reverse cables since each pin number on one connector is connected to the same number on the other end. To adapt the RJ-12 connect to fit the standard COM port on a computer (9-pin sub-D male), it is required that the PC Serial Port converter be purchased in addition to the cable. The reverse cable are available with standard lengths or a custom lengths up to 100 feet.

    Optec Product Number: 17671

    Additional Information

    Accessory TypeCable
    ConditionNew
    Connects FromComputer
    Connects ToCamera
    ManufacturerOptec
    Warranty1 Year Warranty
