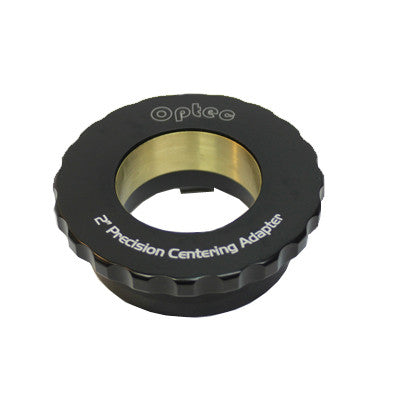

• Optec 3" to 2" Precision Centering Adapter

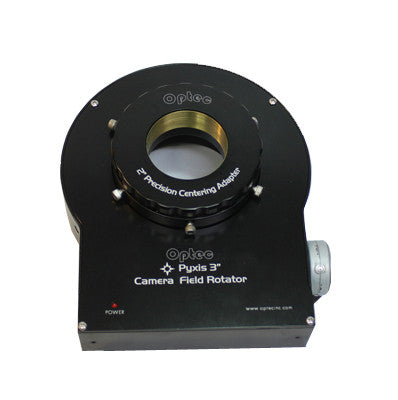

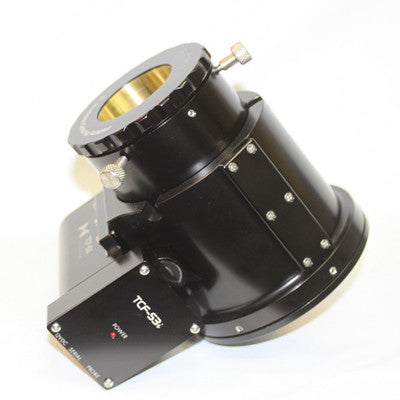

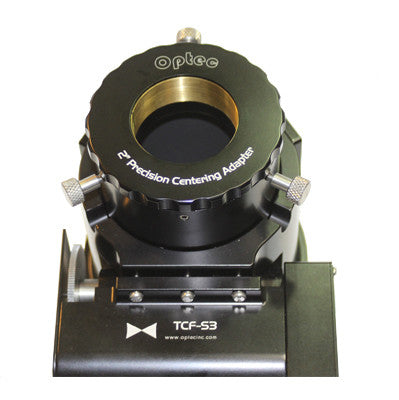

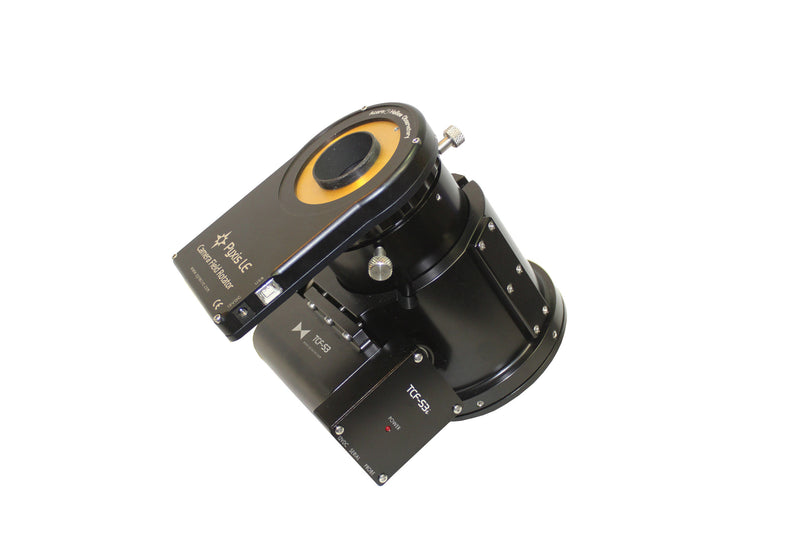

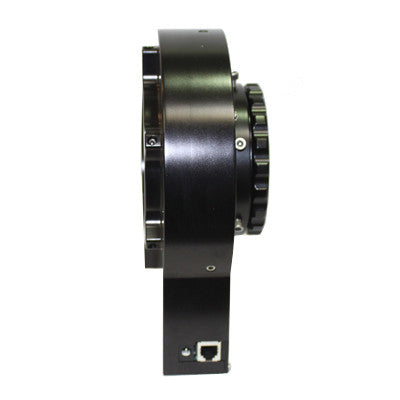

  The Optec Precision Centering Adapter allows accessories with a 2-inch draw tube to be attached to Optec 3000 equipment, including the TCF-S3, IFW-3, and Pyxis 3-inch Rotator.

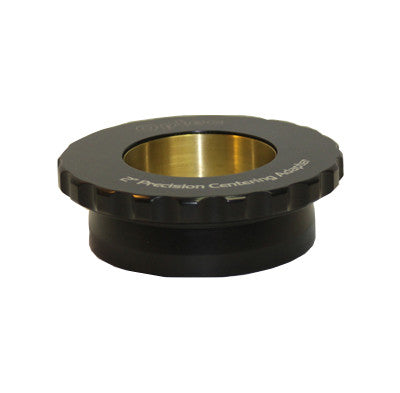

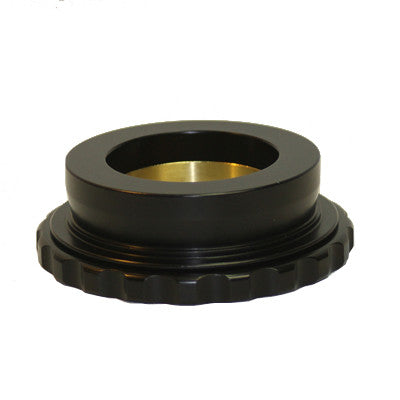

  The Optec 19825 Centering Adapter is designed with a brass centering collet that includes a unique self-centering brass compression ring. When you twist the collar counter-clockwise, the adapter allows insertion of your 2-inch nosepiece, eyepiece, or other 2-inch push-fit accessory. Just twist the collar clockwise to tighten and center your accessory in the adapter.



  Optec 3-inch to 2-inch Centering Adapter Specifications

  • Outside Diameter: 3.75-inches (95 mm)



  • Overall Height: 1.18-inches (30 mm)



  • Clear Aperture: 2.01-inches (51 mm)



  • Weight: 6.08-ounces (172 g)



  • Compression Ring: machined 360 brass



  • Back-focus Usage: 0.45-inch (11.5 mm)



  • Telescope Side Connection: OPTEC-3000 Dovetail



  • Camera Side Connection: 2-inch Receiver

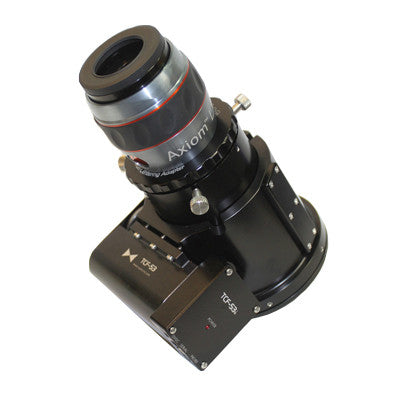

  • Camera-side Compatibility: 2-inch Eyepieces, Camera Nosepieces, Pyxis 2-inch camera field rotator, NextGen and Lepus Telecompressors, and any 2-inch 'push-fit' accessory

  Manufacturer Product Number: 19825
