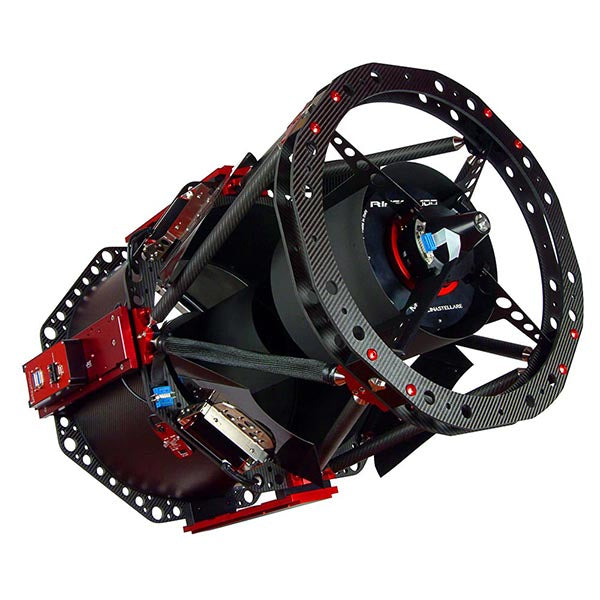

Officina Stellare 400mm f/3.8 RiFAst Astrograph - Standard Glass - Aluminum & Carbon Tube

SKU : OF-RIFA400SGA

- Read
  • Special Order Only

Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • For time frames or questions, please contact us at 800-483-6287.
  • Aperture: 400 mm (16-inch)
  • Glass: Low expansion borosilicate
  • Focal Ratio: f/3.8
  • Focal Length: 1520 mm
  • Full Corrected and Illuminated Field: 80 mm
  • Back Focus: 170 mm

Product Details

  •

    Officina Stellare RiFAst 400 Astrograph

    Officina Stellare is one of the today's leaders in the production of high-quality astronomy equipment for the discerning professional or advanced amateur. Their products can be found in observatories around the world, and their high speed tracking lens systems are a relied upon component in the industries of aerospace and defense.

    One of the reasons Officina Stellare is so popular today is because they listen to their customers. In fact, the RiFAst series of astrographs was created because customers asked for a fast telescope (even faster than Officina's RiLA models) with a very wide, corrected field of view. They wanted something that didn't weigh a ton, but that would accept all of the imagers, rotators, focusers, guiders, and other equipment that makes up the imaging train used by today's astronomer.

    Once Officina Stellare decided they would make this dream telescope a reality, they put Italian optical designer, Massimo Riccardi, on the job. Riccardi wanted to create a telescope that had the following characteristics:

    • It had to be a fast system.
    • The design needed to be compact and lightweight for its aperture.
    • It would have the least number of surfaces possible while still producing a large corrected field.
    • The secondary obstruction would be as small as possible.

    These features were made a reality and then some with the creation of the Officina Stellare RiLA and RiFAst series. The design, which is a modification of the Harmer-Wynne, has an aspherical primary and a spherical secondary. A special corrector is placed just before focus.

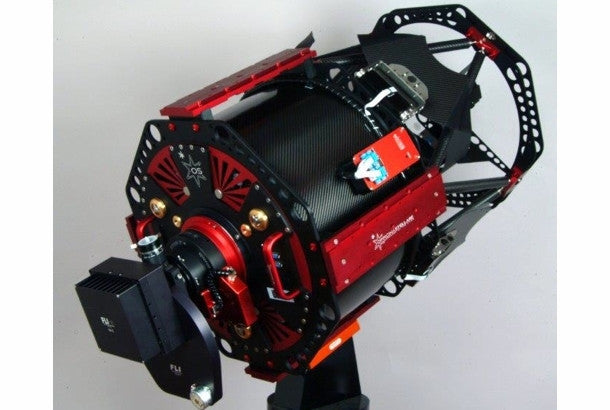

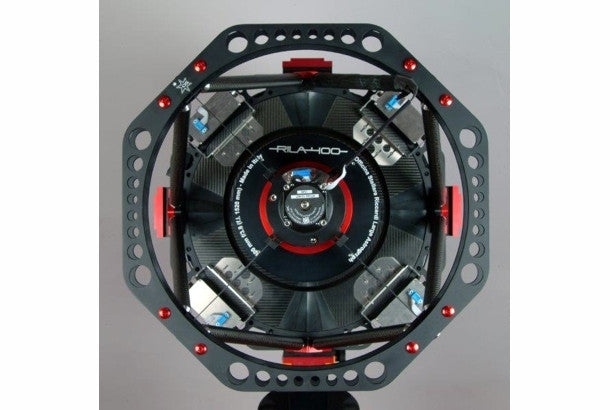

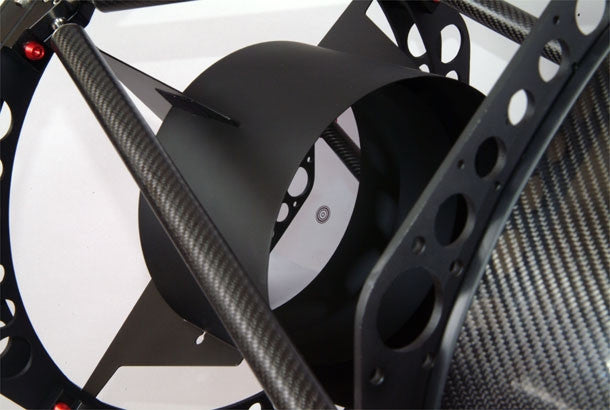

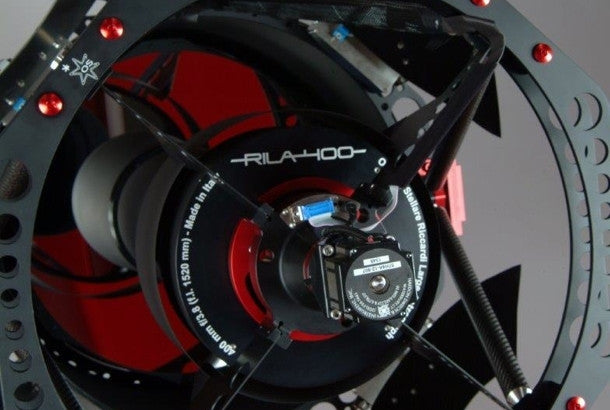

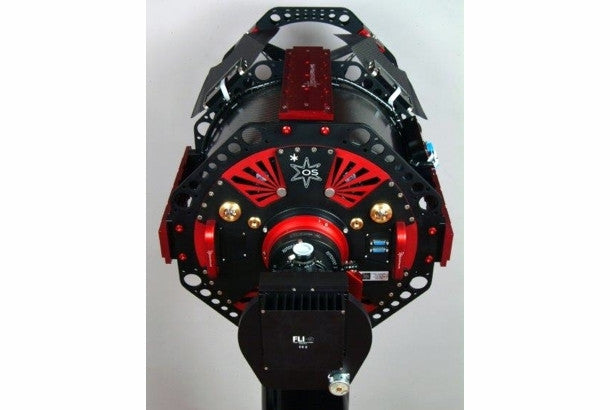

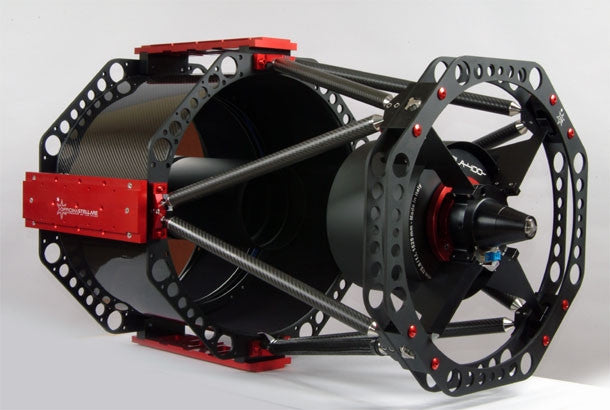

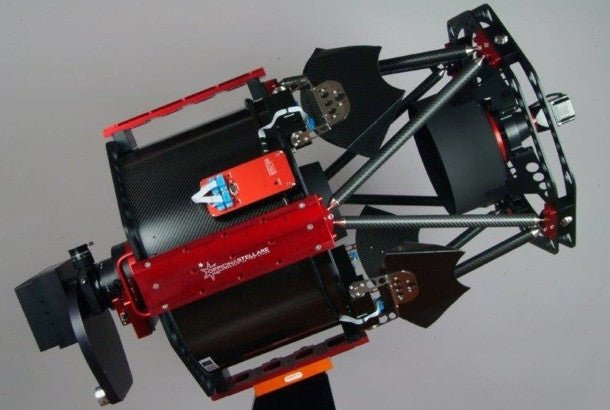

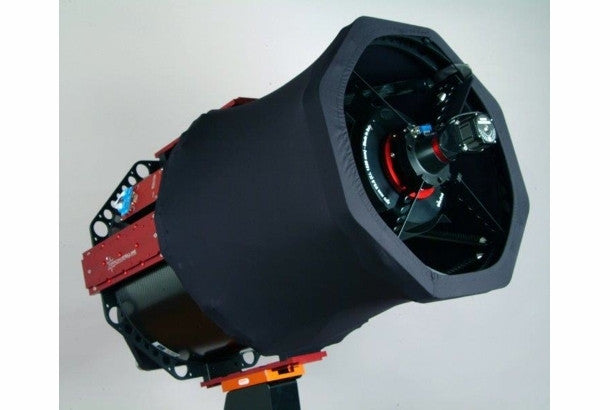

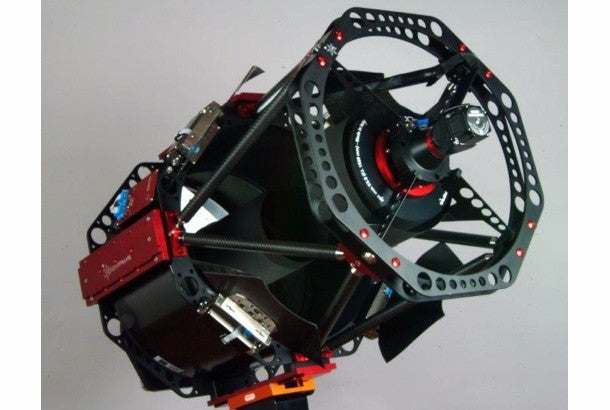

    The Officina Stellare 400 RiFAst has a 16" aperture and an f/ratio of 3.8. The optics are housed in a carbon fiber/aluminum open truss tube, and there are Losmandy style dovetails mounted on the truss for mounting versatility. Three ventilation fans are part of the design, which helps the telescope reach ambient temperature as quickly as possible. The mirrors can be heated to keep dew at bay, and depending on the package or accessories you choose, most everything can be electronically controlled via the TC-1.

  • specifications

    Aperture400 mm (15.75")
    Back Focus240mm
    Corrected Image Circle70mm
    Dawes Limit0.29 arcseconds
    Focal Length1520 mm
    Focal Ratiof/3.8
    FreightYes
    Highest Magnification800x
    Light Gathering Power3265x
    Limiting Magnitude16.8
    Linear Obstruction55 percent
    Optical DesignHarmer Wynne
    RMS Spot Size8.4 microns
    Secondary Obstruction220.mm
    Tube Weight88.2 lbs
  • included items

    THIS IS A CUSTOM ORDER PRODUCT, ABSOLUTELY NO REFUNDS WILL BE GIVEN AFTER PURCHASE!
