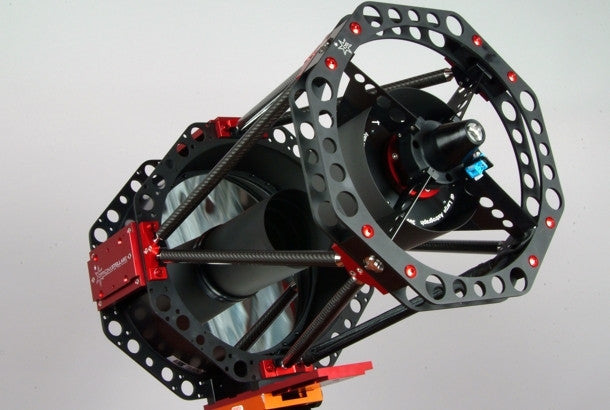

Officina Stellare 300mm f/3.8 RiFAst Astrograph - Full Carbon

Brand: Officina Stellare

SKU : OF-RIFA300FC

- Read
  • More on the way in 14-28 days

Add to Wishlist

Got questions? Click for live chat

THIS IS A CUSTOM ORDER PRODUCT, ABSOLUTELY NO REFUNDS WILL BE GIVEN AFTER PURCHASE!

Product Details

  •

    About the Officina Stellare RiFAst Astrographs

    Officina Stellare is one of today's leaders in the production of high quality astronomy equipment for the discerning professional or advanced amateur. Their products can be found in observatories around the world, and their high speed tracking lens systems are a relied upon component in the industries of aerospace and defense.

    One of the reasons Officina Stellare is so popular today is because they listen to their customers. In fact, the RiFAst series of astrographs was created because customers asked for a fast telescope (even faster than Officina's RiLA models) with a very wide, corrected field of view. They wanted something that didn't weigh a ton, but that would accept all of the imagers, rotators, focusers, guiders, and other equipment that makes up the imaging train used by today's astronomer.

    Once Officina Stellare decided they would make this dream telescope a reality, they put Italian optical designer, Massimo Riccardi, on the job. Riccardi wanted to create a telescope that had the following characteristics:

    • It had to be a fast system.
    • The design needed to be compact and lightweight for its aperture.
    • It would have the least number of surfaces possible while still producing a large corrected field.
    • The secondary obstruction would be as small as possible.

    These features were made a reality and then some with the creation of the Officina Stellare RiLA and RiFAst series. The design, which is a modification of the Harmer-Wynne, has an aspherical primary and a spherical secondary. A special corrector is placed just before focus.

    A wide range of apertures is available, starting at 12" and topping out at 32". All Officina Stellare RiFAST telescopes are f/3.8. The optics are housed in a full carbon fiber athermic open truss tube, and there are Losmandy style dovetails mounted on the truss for mounting versatility. Three ventilation fans are part of the design, which helps the telescope reach ambient temperature as quickly as possible. The mirrors can be heated to keep dew at bay, and depending on the package or accessories you choose, most everything can be electronically controlled via the TC-1.



    Officina Stellare 300mm f/3.8 RiFAst Highlights



    • Aperture: 300mm (12")
    • Focal Ratio: f/3.8
    • Focal Length: 1150mm
    • Full Corrected & Illuminated Field: 60 mm
    • RMS Spot Size at 30 mm Off-Axis: 7.2 micron
    • RMS Spot Size at 26 mm Off-Axis: 7.4 micron
    • Back Focus: 130mm
    • Linear Obstruction: 55%
    • Truss: Full Carbon, Athermic
    • Easy Alignment: Specially designed mirror cells and spherical secondary are easy to align. Primary cell is detachable for easy cleaning of the mirror.
    • Diffraction limited: to 15 mm off-axis in the 430 to 750 nm range



    This RiFAst Package Includes



    • 12" Astrograph in Full Carbon OpenTruss Design
    • Four Losmandy-Style Dovetails
    • Three Ventilation Fans
    • Manual Control on Both Mirrors
    • Manual Movement of Secondary Mirror
    • TC-01 Electronics
    • Black Fabric Shroud
    • Caps/Covers
  • specifications

    Aperture300 mm (11.75")
    Back Focus125mm
    Corrected Image Circle60mm
    Dawes Limit0.39 arcseconds
    Focal Length1140 mm
    Focal Ratiof/3.8
    FreightYes
    Highest Magnification600x
    Light Gathering Power1837x
    Limiting Magnitude16.1
    Optical DesignHarmer Wynne
    RMS Spot Size7.4 microns
    Secondary Obstruction171.mm
    Tube Weight44.1 lbs
  • included items
