Officina Stellare 600mm f/3.8 RiFAst Astrograph, Std.Glass, Aluminum-Carbon Tube

SKU : OF-RIFA600SGA

- Read
  • Special Order Only

Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • For time frames or questions, please contact us at 800-483-6287.
  • An Astrograph with a 600 mm (24-Inch) Aperture!
  • RiFAst f/3.8
  • Focal Length of 2280 mm
  • Aluminum/Carbon Truss Tube Design
  • Designed for Easy Alignment



Product Details

  • The 600 mm f/3.8 RiFAst Astrograph with Standard Glass and an Aluminum-Carbon Tube, by Officina Stellare:



    Officina Stellare is one of today's leaders in the production of high-quality astronomy equipment for the discerning professional or advanced amateur. Their products can be found in observatories around the world, and their high-speed tracking lens systems are a relied upon component in the industries of aerospace and defense.

    One of the reasons Officina Stellare is so popular today is because they listen to their customers. In fact, the RiFAst series of astrographs was created because customers asked for a fast telescope (even faster than Officina's RiLA models) with a very wide, corrected field of view. They wanted something that didn't weigh a ton, but that would accept all of the images, rotators, focusers, guiders, and other equipment that makes up the imaging train used by today's astronomer.

    Once Officina Stellare decided they would make this dream telescope a reality, they put Italian optical designer, Massimo Riccardi, on the job. Riccardi wanted to create a telescope that had the following characteristics:



    • For time frames or questions, please contact us at 800-483-6287.
    • It had to be a fast system.
    • The design needed to be compact and lightweight for its aperture.
    • It would have the least number of surfaces possible while still producing a large corrected field.



    These features were made a reality and then some with the creation of the Officina Stellare RiLA and RiFAst series. The design, which is a modification of the Harmer-Wynne, has an aspherical primary and a spherical secondary. A special corrector is placed just before focus.

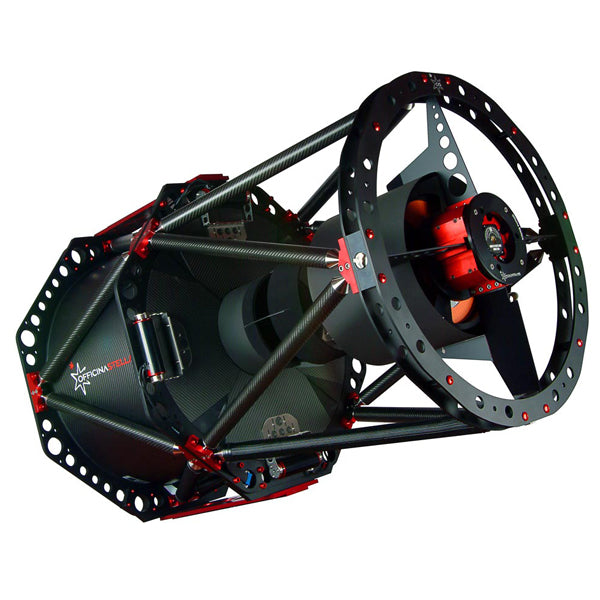

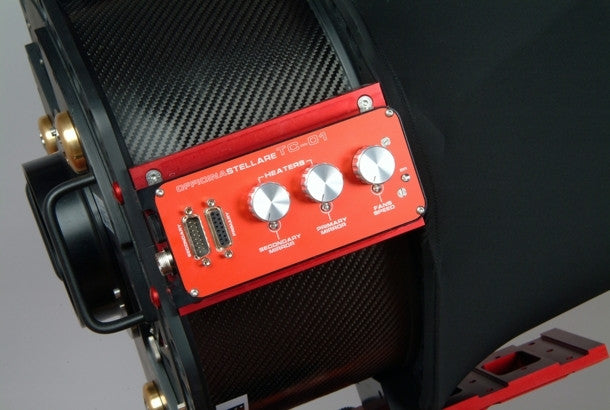

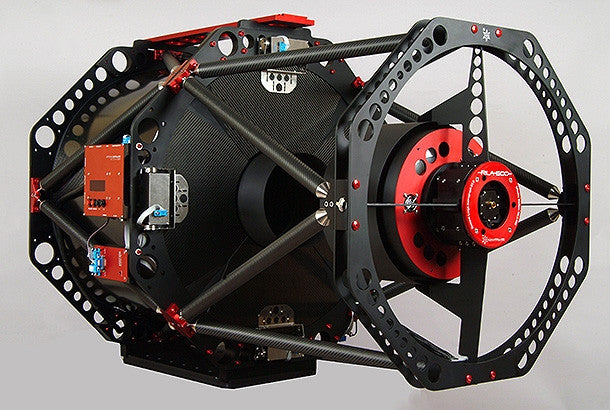

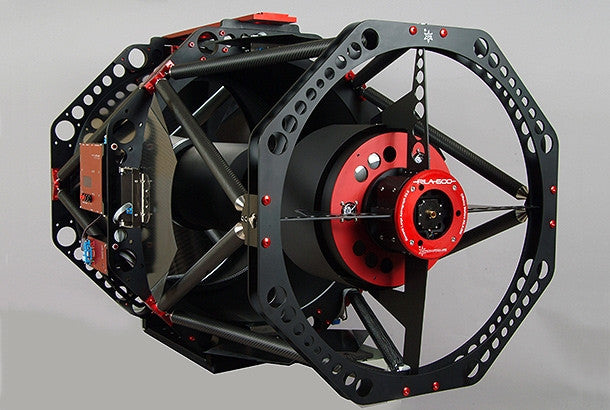

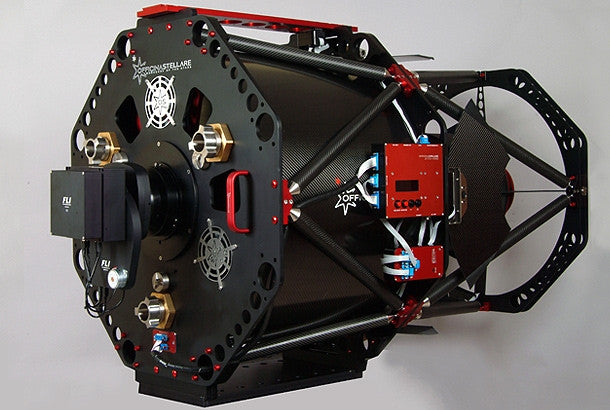

    The Officina Stellare 600 RiFAst Astrograph has an aperture of 24-inches and a focal ratio of f/3.8. The low expansion optics are housed in a carbon fiber/aluminum open truss tube, and there are Losmandy style dovetails mounted on the truss for mounting versatility. Three ventilation fans are part of the design, which helps the telescope reach ambient temperature as quickly as possible. The mirrors can be heated to keep dew at bay, and depending on the package or accessories you choose, most everything can be electronically controlled via the TC-1.



    • For time frames or questions, please contact us at 800-483-6287.
    • Aperture: 600 mm (24-inch)
    • Glass: Low Expansion Borosilicate
    • Focal Ratio: f/3.8
    • Focal Length: 2280 mm
    • Full Corrected and Illuminated Field: 100 mm
    • Back Focus: 220 mm
    • Linear Obstruction: 55-percent

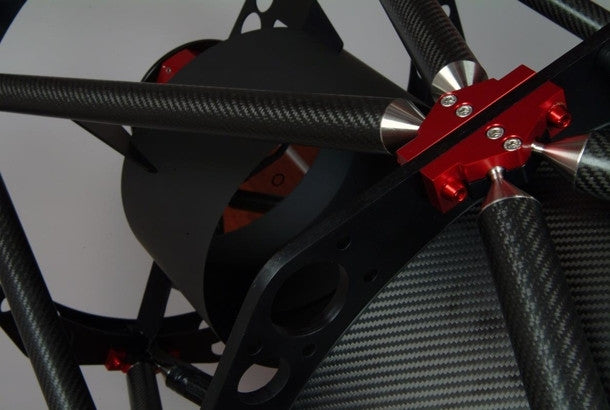

    • Truss: Carbon/Aluminum Truss Tube Design

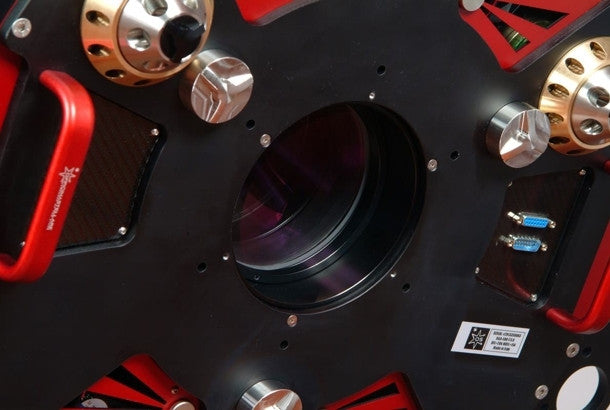

    • Easy Alignment: Specially designed mirror cells and spherical secondary are easy to align. Primary cell is detachable for easy cleaning of the mirror.



  • specifications

    Aperture600 mm (23.5")
    Dawes Limit0.19 arcseconds
    Focal Length2280 mm
    Focal Ratiof/3.8
    FreightYes
    Limiting Magnitude17.6
    Optical DesignHarmer Wynne
  • included items

    THIS IS A CUSTOM ORDER PRODUCT, ABSOLUTELY NO REFUNDS WILL BE GIVEN AFTER PURCHASE!
