Meade Variable Projection Camera Adapter

  • Sale
  • Regular price $47.94
  • ITEM #
    ME-07361


3

Features

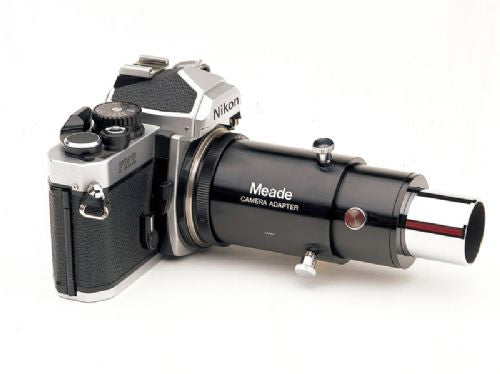

Meade Variable Projection Camera Adapter

Meade Variable Projection Camera Adapter


The Variable-Projection Camera Adapter includes a sliding mechanism, permitting variable projection distances during eyepiece projection photography, avoiding the need to switch to higher power eyepieces when additional projection enlargement is desired.

Each complete Meade Variable Projection Camera Adapter (camera not included) consists of two separable units for either prime focus or eyepiece-projection photography.

Meade Product Number: 07361 Please Note: The Meade Variable Projection Camera Adapter was created to work with Meade Series 4000 eyepieces. These eyepieces have very little extra width throughout the length of the eyepiece, and so slip easily inside the tube when doing eyepiece projection photography. If the eyepieces you plan to use with this adapter are wider at any point, or have an eyecup that is not removable, they may not fit inside. Many people end up buying a specific eyepiece just for this purpose because their visual collection consists of beefier, tricked out eyepieces. Hope this helps!

Additional Information

Adapter TypeDSLR & Digi Adapters
ConditionNew
Free ShippingYes
ManufacturerMeade
Warranty1 Year Warranty

Customer Reviews

Based on 1 review Write a review

Questions & Answers

Ask a Question
  • Is it threaded for 1.25" filters?

    Thank you for your question. This item is indeed threaded for 1.25" filters so you can use planetary, nebula, moon filters, etc. and they will thread on.

  • How/where do you insert the eyepiece so that it's secure and doesn't wobble about? No instructions were included. Thanks.

    Good afternoon and thanks for asking. Remove the chrome barrel from the eyepiece you want to use. Loosen all three screws on the adapter and make it as short as possible. Gently, drop the eyepiece into the camera end of the adapter and tighten the single

  • How/where do you insert the eyepiece so that it's secure and doesn't wobble about? No instructions were included. Thanks.

    In addition, you can remove the polished 1.25" adapter from the front and screw the sliding barrel portion directly to a prime focus T-adapter (like Mead's #62) on a SCT. This allows use as a variable length extension tube, with or without an eyepiece ins

  • Can I use the Super Plossi series by Televue ?

    The 25mm and shorter focal length Televue Plossl eyepieces will fit. The rubber eye guard on the 25mm will need to be removed for it to slip in.
