Meade 16" F/8 ACF Optical Tube Assembly

ITEM #
ME-1608-80-01
No Reviews yet.
  • Price:
  • Sale
  • Regular price $7,399.00

1
Free Shipping
Already have gear? Trade it in for cash or new equipment.

Accessories Added

  • Aperture: 406 mm (16-Inch)
  • Focal Ratio: f/8
  • Focal Length: 3251 mm
  • Optical Design: ACF Cassegrain



DESCRIPTION

Meade 16" F/8 ACF Optical Tube Assembly

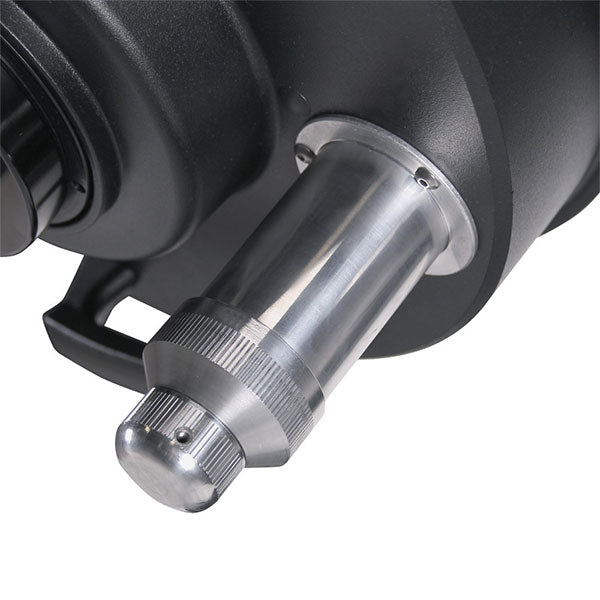

Meade's 16-Inch Advanced Coma Free (ACF) optical tube features a fast f/8 design making it an optimal choice for astrophotographers needing a large aperture system. Specialized baffling provides high-contrast images that are crisp from edge to edge. An internal Crayford-style focusing system moves the primary mirror with zero backlash or image shift and has a 7:1 focusing speed ratio which smooth and precise.

Meade's proprietary ACF optical design goes a step beyond traditional Schmidt-Cassegrain telescopes by shortening the focal length and improving image clarity, color and contrast. Advanced Coma Free optics are exactly that, coma free. Stars are crisp and clear throughout the image circle. This revolutionary design provides the kind of image quality that was previously only seen in Ritchey-Chretien and similar astrograph designs which typically carry a might higher price tag at this aperture. By employing the ACF design, Meade has been able to offer professional grade optical quality at a never-before-seen price.



Meade 16-Inch ACF OTA Specs and Features:

  • 3251 mm focal length gives you a focal ratio of f/8 making this a fast Cassegrain-style design, reducing exposure times without sacrificing image quality.
  • Carefully designed internal baffling maximizes light transmission for optimal contrast and brightness.
  • Signature blue matte pebble finish on the optical tube is both durable and beautiful.



Included Technology

Advanced Coma-Free Optics (ACF)

Building from a classic RC design, Meade created a new design with coma-free pinpoint star images and flatter field. The ACF design reduces astigmatism and eliminates dffraction spikes found in classical RCs. TheACF is the perfect plattfor for the demanding researcher and imaging enthusiast with telescopes available in aperture of 6-inches, 8-inches,10-inches, 12-inches, 14-inches, and 16-inches

Ultra-High Transmission Coatings (UHTC)

Specialized Multi-layered coating that are preciesely designed to improve the performance of your telescopes optics. You'll see brighter star clusters, more fine details in nebulas, and more surface features on planets with UHTC than without. Averaged over the entire visible spectrum, total light transmission to the focus increases by 15%.

SPECIFICATIONS

Aperture406 mm (16")
Camera/Eyepiece Connection2" Nosepiece
Camera/Eyepiece Connection2"x24tpi
Camera/Eyepiece Connection3.27"x16tpi
Dawes Limit0.29 arcseconds
Focal Length3251 mm
Focal Ratiof/8
Free ShippingYes
Hightest Magnification812x
Light Gathering Power3364x
Limiting Magnitude16.8
ManufacturerMeade
Optical DesignModified SCT
Warranty1 Year Warranty

INCLUDED ITEMS

  • 16-Inch F/8 ACF Optical Tube Assembly



QUESTIONS & ANSWERS

Ask a Question
  • What does the telescope weigh ?

    The Meade 16" ACF F/8 weighs 70lbs.

  • Please, what is the tube lenght,?

    Good afternoon, the tube length is 31". The focus knobs on the rear add another three inches.
