Meade 8" f/4 LX85 Astrograph Reflector Optical Tube

Brand: Meade

SKU : ME-217028

- Read
Looking for a Meade 8" f/4 LX85 Astrograph Reflector Optical Tube? Shop this product at Agena Astro by clicking the SHOP NOW button!
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • 8" f/4 astrograph reflector optical tube really pulls in the faint light from distant celestial objects, perfect for both visual and photographic work
  • 2" linear bearing Crayford focuser features a 10:1 fine focus reduction knob for precise and repeatable focus
  • Long 83.2mm back focus designed for attaching a variety of camera gear including a DSLR and coma corrector
  • Tube only weighs 16 lbs, and is 27.5" long - will work on any Vixen compatible mount with this weight capacity

Product Details

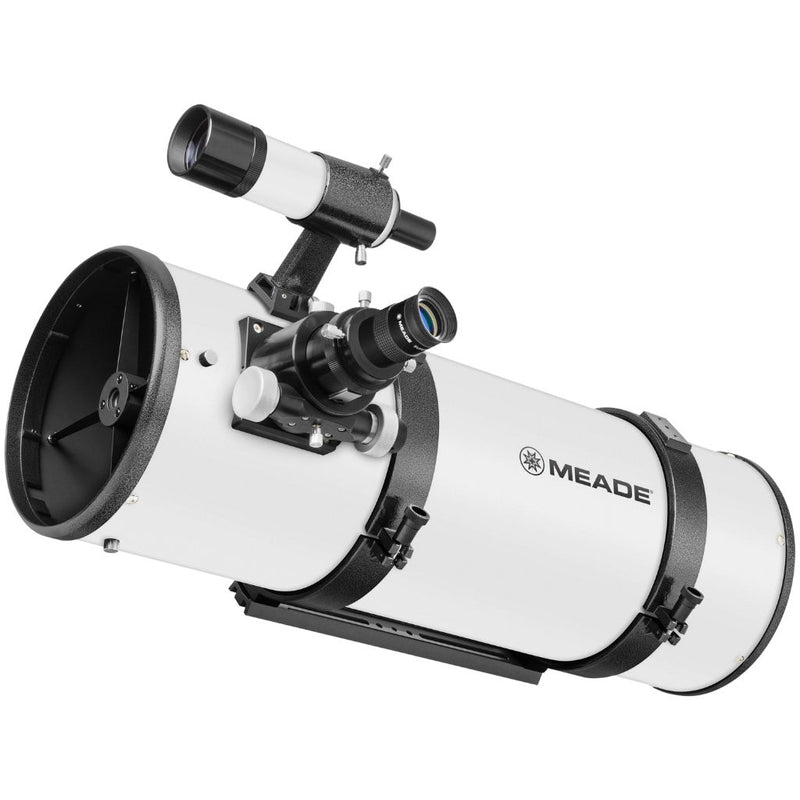

  • The Meade 8” f/4 LX85 astrograph reflector optical tube assembly is a compact wide field telescope, with an immense amount of light grasp, thanks to the large 8” BK7 (Borosilicate) mirror and >90% enhanced reflectivity coatings. The f/4 system is incredibly fast, meaning with a camera it will collect a lot of light in a short time, perfect for taking shorter exposures while still recording all sorts of detail in the nebulae and galaxies.

    With an 800mm focal length, pairing this telescope optical tube with a DSLR or other astro camera will yield large and rich swaths of sky, perfect for framing any number of large deep-sky objects. And with the 2” linear bearing Crayford focuser, trying pairing it with a low power 2” eyepiece with a large apparent field of view. From a dark-sky location away from city lights, objects such as the Veil Nebula will reveal structures you may not have seen before. The focuser features a 10:1 reduction fine focus knob, brass compression rings (so you don’t mar the barrel of your eyepieces or camera adapters) and a 2” to 1.25” step down adapter (also with a brass compression ring).

    The telescope is designed to reach focus with any DSLR camera, along with a host of other imaging accessories, and the long 83.2mm back-focus helps ensure compatibility with various equipment. In order to allow visual use as well, a 35mm long 2” diameter eyepiece extension tube is also provided, allowing most all 2” and 1.25” eyepieces to work with the telescope.

    Depending on the size of your camera sensor, an optional coma corrector is recommended to eliminate the inherent coma in a reflector design. This would prove beneficial when using low power 2” eyepieces, or camera sensors above ~4:3 format.

  • specifications

    Aperture200 mm (8")
    Back Focus83.2 mm
    Dawes Limit0.58 arcseconds
    EyepiecesSuper Plossl 26.0mm
    Finder Scope Magnification8x
    Finder Scope8x50
    Focal Length800mm
    Focal Ratiof/4
    Secondary Obstruction70 mm/ 2.5 inches
    Free ShippingYes
    Glass TypeBK 7
    Highest Magnification300x
    Lens Diameter50mm
    Optical DesignNewtonian
    Tube Length699mm
    Tube Weight16 lbs
    Warranty2 Year Warranty
  • included items

    • Hinged tube rings
    • Vixen-style dovetail rail
    • 26mm Super Plössl eyepiece
    • 12v cooling fan
    • 8x50 finder scope
    • 2" eyepiece extension tube
