Meade 6" f/10 LX85 ACF Optical Tube Assembly

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

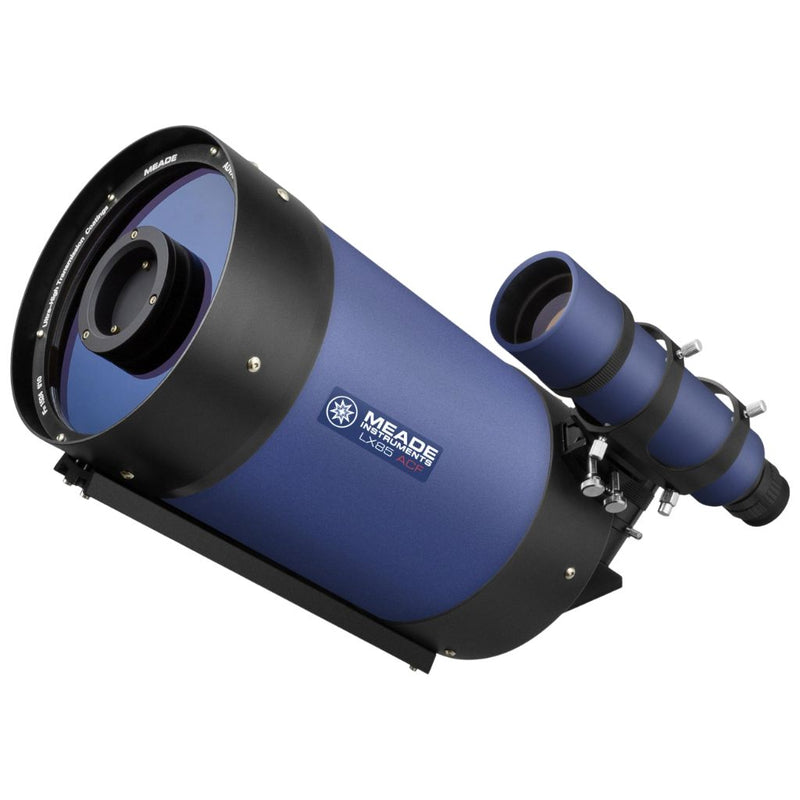

• The Meade 6” f/10 LX85 ACF optical tube assembly hosts a number of high end features, all in a very compact package. The Advanced Coma Free (ACF) design provides a tack sharp image with no coma distortion, inherent in some other designs. The ACF system also provides for an extremely flat field of view, perfect for astro-imagers with larger camera sensors.

  Ultra-High Transmission Coatings (UHTC) provide beautifully bright images of deep-sky objects, with excellent contrast of surface features found on the moon and planets. The optics feature an oversized low-expansion Borosilicate primary mirror and Schott® Borofloat® glass corrector plate. The corrector plate produces zero diffraction spikes because there are no secondary spider vanes, like found on some other designs such as Newtonian reflectors or Ritchey-Chretiens.









  Designed and Manufactured in North America, and the ACF primary, secondary and corrector plate glass blanks are manufactured in the USA exclusively for Meade.

  The long 1524mm focal length is housed in a tube that is less than 17” long, and weighs just 9.9 lbs. A Vixen-style dovetail rail is attached to the bottom of the telescope optical tube, meaning it can be attached to any compatible Alt-Az or EQ mount that uses a Vixen-style cradle.

• specifications

  Aperture	152mm (6")
  Dawes Limit	0.77 arcseconds
  Eyepieces	Super Plossl 26.0mm (1.25”)
  Finder Scope Magnification	8x
  Finder Scope	8x50
  Focal Length	1524mm
  Focal Ratio	f/10
  Focuser	Internal
  Free Shipping	Yes
  Highest Magnification	300x
  Lens Diameter	50mm
  Optical Design	Cassegrain
  Tube Length	419mm
  Tube Weight	9.9 lbs
  Warranty	2 Year Warranty

• included items

  • 1.25” 90 degree diagonal mirror
  • Vixen-style dovetail bar
  • Meade 26mm Super Plössl eyepiece
  • 8x50 optical finder scope with bracket
  • Dust caps
