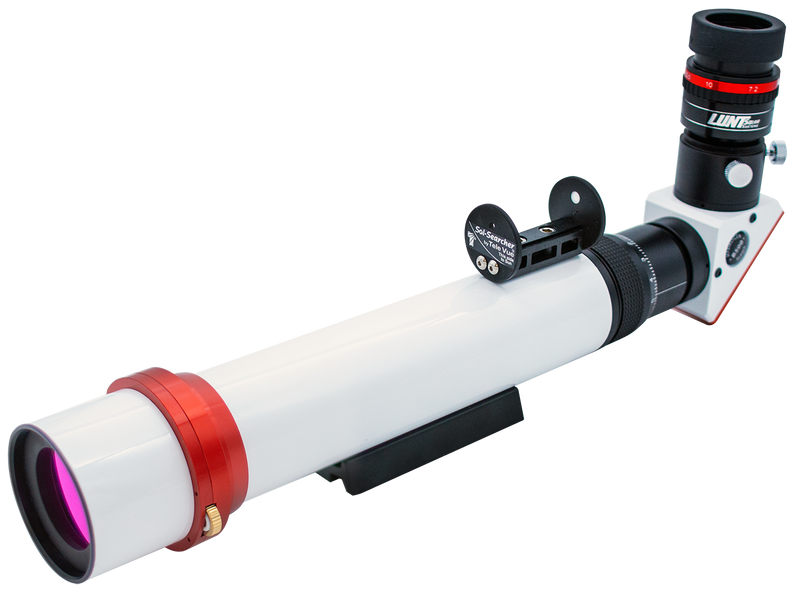

Lunt Solar 50mm Dedicated Hydrogen-Alpha Solar Telescope w/ B400 Blocking Filter & Helical Focuser

Brand: Lunt Solar

SKU : LS-LS50THa/B400PT

- Read
Add to Wishlist

Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • The Lunt 50 mm Dedicated Hydrogen-Alpha Solar Telescope, complete with a Pressure Tuner, provides the basic essentials perfect for a first time introduction to solar observing
  • Includes the newest technology for fine tuning, allowing basic research of the Sun’s disk and some surface details

Product Details

  • This is a 50 mm, unobstructed, pressure-tuned, dedicated Hydrogen-alpha telescope with a bandpass of less than 0.7 Å. The excitement of viewing our star through a dedicated solar telescope is sure to provide many many hours of visual enjoyment and educational insights.

    Furthermore, this package is fully upgradeable at any time without ever having to go back to the factory. Therefore, as the Sun becomes increasingly more active, you will appreciate that the instrument can grow right along with it.

    B400 Blocking Filter

    A Blocking Filter is a required component when using any Lunt solar filter or solar telescope products. The housing contains additional filters that are needed for safety when viewing the Sun. Do not use a Lunt Solar Systems telescope or filter without a Lunt brand blocking filter. Lunt Solar can only warranty safety or performance when one of their blocking filters is paired with a Lunt H-alpha filter or telescope.

    Focal Length Suggestions for Visual Use:

    • B600 : For visual use on telescopes with focal lengths up to 600 mm
    • B1200: For visual use on telescopes with focal lengths up to 1200
    • B1800: For visual use on telescopes with focal lengths up to 1800 mm
    • B3400: For visual use on telescopes with focal lengths up to 3400 mm

    When imaging with a Lunt Solar System it is recommended that the user opt for the next larger blocking filter than that recommended for visual use. This is due to the fact that most imaging systems require additional “back focus”. It’s important to realize that the blocking filter be moved further up the light cone. As a result, the aperture of the blocking filter needs to be larger to allow for the larger cone size.

    Focal Length Suggestions for Imaging Use:

    • B600: For imaging use on telescopes with focal lengths up to 400 mm
    • B1200: For imaging use on telescopes with focal lengths up to 600 mm
    • B1800: For imaging use on telescopes with focal lengths up to 1200 mm
    • B3400: For imaging use on telescopes with focal lengths up to 1800 mm

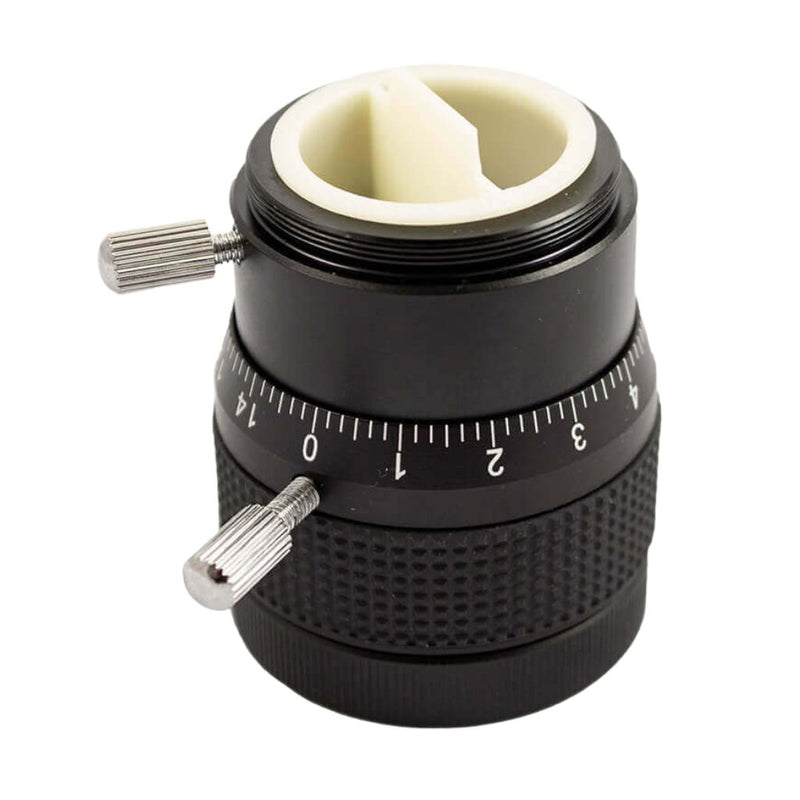

    Helical Focuser

    The Lunt Mini is a non-rotating helical focuser that provides a T2 (male) to T2 (female) thread connection. The focuser has 10 mm of precision travel, a brass compression ring for protection of eyepieces, and a locking collar. The T2 thread design is ideal for fine camera/eyepiece focus.

  • specifications

    Aperture50mm (2")
    Bandpass<0.5 Angstrom (Double Stack)
    Bandpass<0.7 Angstrom (Single Stack)
    Focal Length350mm
    Focal Ratiof/7
    FocuserHelical
    Optical DesignDoublet Refractor
  • included items

    • Lunt 50 mm Dedicated H-alpha Solar OTA
    • Clamshell
    • Custom Foam
    • B400 Blocking Filter
    • Helical Focuser
