Lunt Solar 130mm Universal Telescope w/ B3400 & Feather Touch Focuser

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

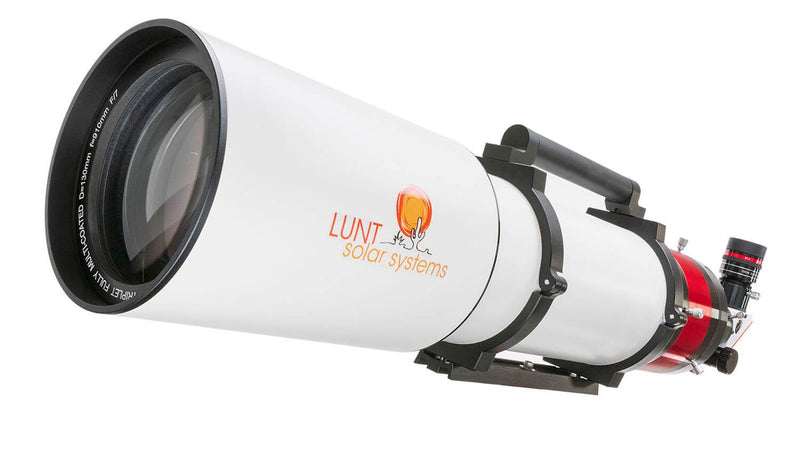

• The Lunt LS130MT solar telescope is a complete solar telescope. This refractor-based system has a precision-aligned triplet ED lens with a 130 mm aperture. Furthermore, the focal length is 910 mm, for an f/ratio of 7. Additionally, the coarse focus adjustment is made via a slide tube. While focusing is achieved with a high precision 2″ Starlight Feather Touch focuser with 10:1 reduction as standard equipment. Most importantly, an internal etalon with tune adjustment allows for a <0.65 Angstrom bandpass.

  Nighttime Use

  This is the best telescope for either Solar or Nighttime viewing. Easily change from daytime viewing (through etalons) to nighttime viewing (without etalons) in minutes! This scope gives you the best of both worlds. You’ll see granular details of the Sun and the best nighttime views without visual anomalies. Now you can use one telescope for all your celestial viewing!

  True Doppler Tuning

  Importantly, True Doppler Tuning allows for a shift into and away from the user, adding a 3-D like component to the viewing experience. To be sure, it has minimal effect on proms due to their location at the edge of the disk, but it does have an effect on filaments and likewise the active regions on the surface. Also while looking at a filament at the center of the Sun, the user has the ability to Doppler shift from the base of the filament to the tip. In this way following the filament through it’s structure toward you and away from you. Amazingly, this allowing for enhanced visual and imaging capability for the observer as well as a research tool for the avid hobbyist. In addition the pressure tuning system provides an order of magnitude more precision to the tuning of the desired features.

  Single-Stack Specifications:

  • Aperture: 130mm
  • Etalon: Internal <0.65 Angstrom
  • Tuning: Internal Pressure Tune (Doppler True Tuning)
  • Focal Length: 910mm
  • Focal Ratio: f/7
  • Focuser: 2-inch Feather-Touch with 10:1 reduction (2-inch travel)
  • Mounting Rings and Dovetail (9.5-inch) included
  • Tube Length: 34 inches
  • Case Included: Aluminum-finished hard case with fitted foam
  • Weight: 25 lb

• specifications

  Aperture	130mm (5")
  Dawes Limit	0.89 arcseconds
  Focal Length	910mm
  Focal Ratio	f/7
  Highest Magnification	260x
  Light Gathering Power	345x
  Optical Design	Solar
  Optical Design	Triplet Refractor
  Tube Length	865mm
  Tube Weight	25 lb

• included items

  • Lunt Solar 130mm H-alpha Universal Telescope w/B3400 & Feather Touch Focuser
  • Hard case and custom foam
