LOSMANDY UNIVERSAL DOVETAIL PLATE .70 THICK X 7" LONG

  • Sale
  • Regular price $60.00
  • ITEM #
    LO-DUP7


3

Features

LOSMANDY UNIVERSAL DOVETAIL PLATE .70 THICK X 7" LONG

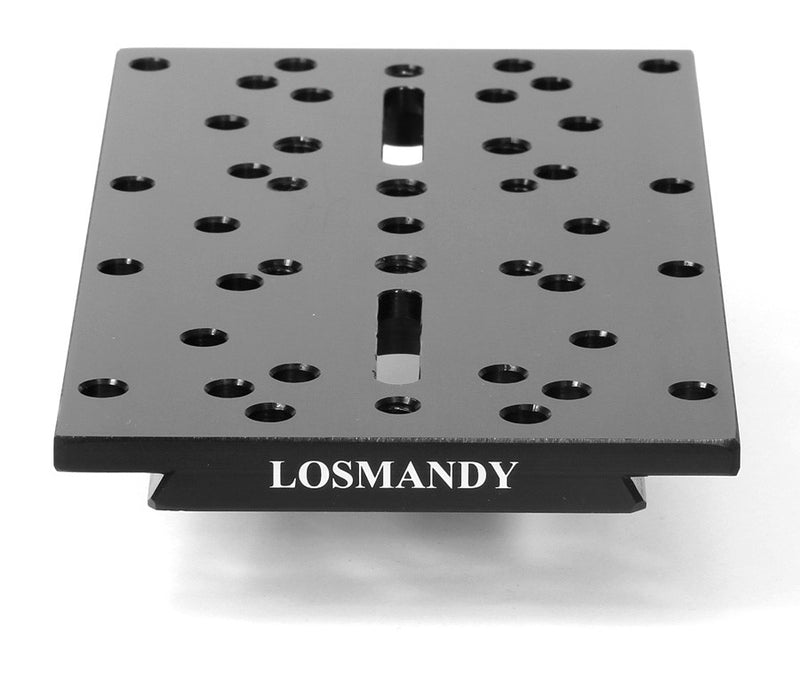

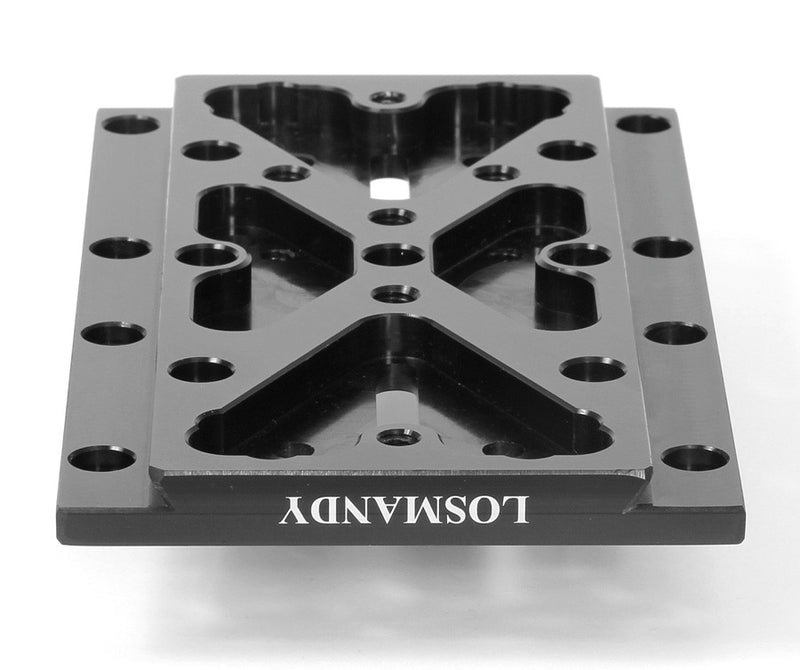

Losmandy Short Universal Dovetail Plate

Losmandy DUPS 7" Dovetail Universal Plate can be used to mount most Stellarvue, William Optics, Televue, Takahashi. Vixen and other rings or clamshells to the Losmandy GM-8 mount. Losmandy DUPS fits the Losmandy GM8, G11 and Titan mounts, as well as the Celestron CGE mount, most Astrophysics mounts, as well as other mounts that use the Losmandy style dovetail.

Like all accessories in the Losmandy line, the universal dovetail plates are machined for lightness and rigidity from aluminum stock, then black anodized for a tough, corrosion free surface. Wt. 1.3 lbs., Length 7", thickness 0.7", one 0.250 wide slot w/ c'bore x 5.0" long.

Losmandy Product Number: DUPS

Additional Information

ConditionNew
ManufacturerLosmandy
Plate TypeDovetails (Male)
Plate Width"D" Series (4")
Warranty1 Year Warranty

Questions & Answers

Ask a Question
  • This dovetail is good to connect a 115 mm refractor 6000 Series Meade to a Skywatcher mount EQ8? Otherwise you recommend. Thankyoy

    Yes, it could work with your scope. However, it would recommend looking into the longer Losmandy DUP-N plate. It will be a bit more sturdy than 7" plate and make the scope easier to balance.

  • Can this plate accommodate astrohysics tub rings with 2.362"(60mm) hole spacing?

    Yes, this plate has 60mm wide holes that you can use, although you may need to source 1/4"-20 hex head screws with low profile heads.

  • I have a William Optics 98FLT with supplied rings. Will they work with this plate?

    Good afternoon and thanks for asking. The rings on the William Optic scope will fit to these rings. They are highly configurable.
