• Losmandy Dovetail Plate - 9.25 SCT

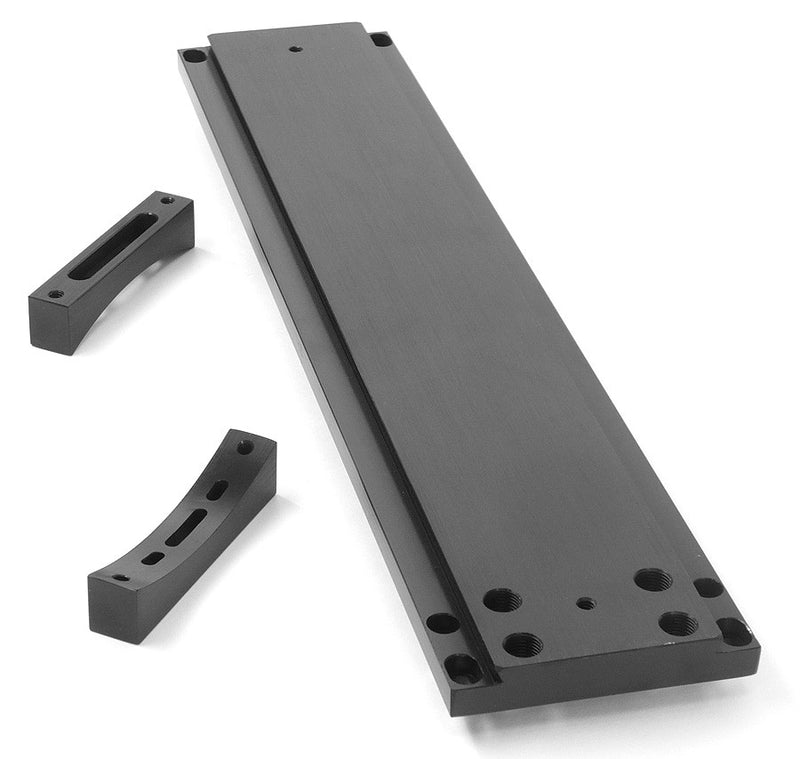

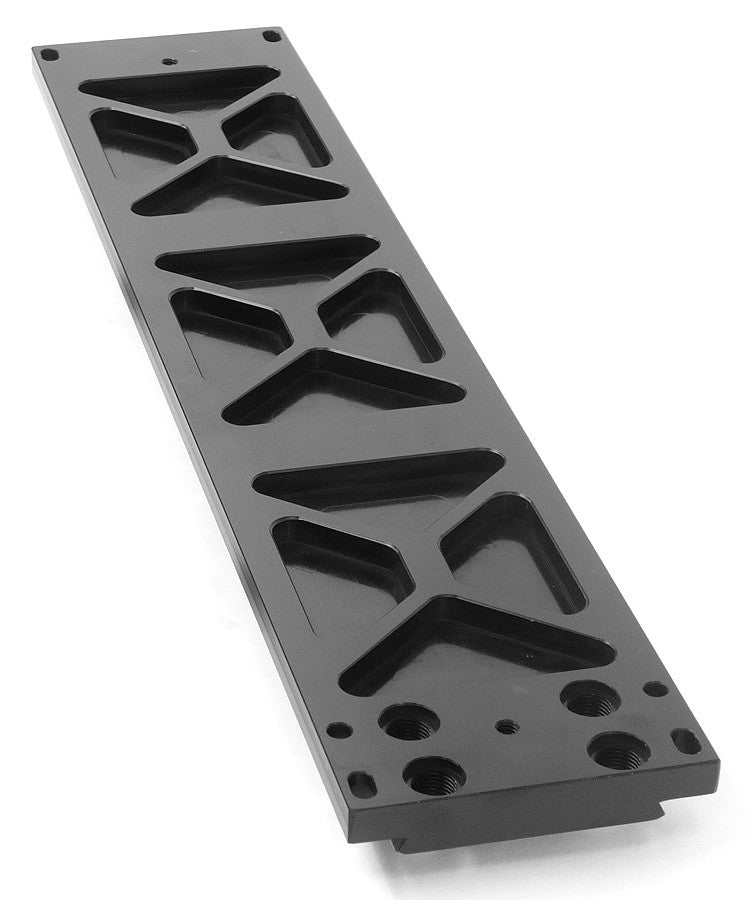

  The Dovetail Plates are the heart of the Losmandy Secondary System. 0.5" x 4.0" x length of the tube assembly. Dovetail plates may be mounted to the top and bottom of tube assembly for mounting of all D series accessories, making it possible to use both sides of tube for equipment. Mounts to all Astrophysics, Celestron, and Meade systems. The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminum stock, then black anodized for a tough, corrosion free surface.

  This Losmandy dovetail plate was designed for Celestron 9.25" SCT and bolts to existing holes. Its weight is 3.5 lbs. and length is 18.925" - HS 17.25. Height from top of tube to top of connected dovetail plate is 1.20"



  Losmandy Product Number: DC9.25

• specifications

  Plate Width	"D" Series (4")
  Warranty	1 Year Warranty
