    Losmandy Dovetail Adapter - D & V Series

    Losmandy Dovetail Adapter - D & V Series

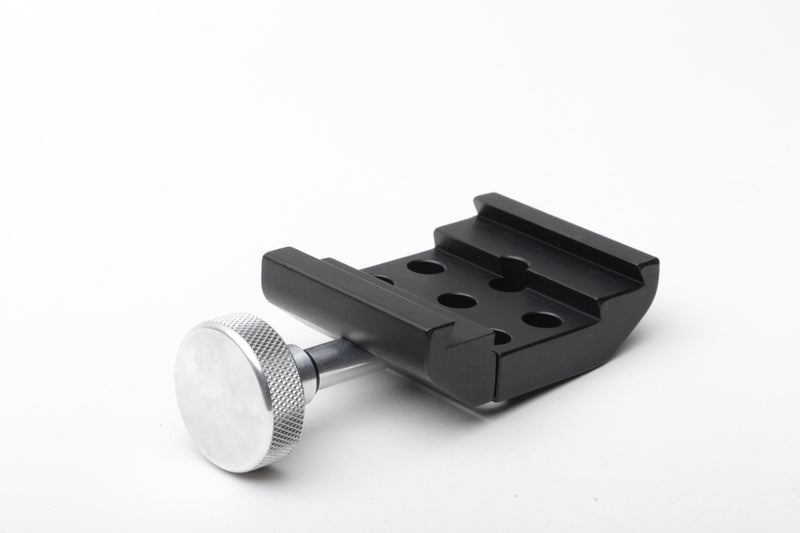

    The Losmandy Dovetail Adapter - D & V Series works with both D and V series plates.Mounts to existing rings or telescopes. For use with dovetail plate. Once mounted, no tools are needed to interchange equipment.

    The Losmandy Dovetail Adapter - D & V Series has a weight of 6.5 oz., and the height from top of dovetail plate to top of DVA is: D plates=.85" and V plates=.55".

    Losmandy Product Number: DVA

    Additional Information


    Customer Reviews

    Based on 1 review Write a review

    Questions & Answers

    Ask a Question
    • Are the six holes in the flat portion threaded or clean bore? I am looking to attach a Celestron optical tube to a photographic tripod where the flat portion would be attached to the tripod head.

      The six holes on the flat portion are all clean bore with countersinks on the clamp side for 1/4" cap head hex screws to fit in flush below the clamp. If your tripod head has a quick release plate and you can thread a 1/4"-20 screw downward into the plate

    • Is the adapter's V side compatible with TPO RC 8" Carbon Fiber vixen dovetail? I would like to use two adapters to attach the Orion Awesome Autoguider Refractor Package rings to the RC 8" vixen dovetail.

      Yes, the inner V clamp will attach to the TPO 8" RC Vixen rail. Two of these clamps will allow attachment of the guidescope using the included rings, though you may need to verify if the rings use 1/4"-20 or 6mm screws as only the 1/4"-20 screws come incl

    • Hi I'm not too mount smart yet. Just to be clear I can use this to mount my D style dovetail to a mount that only accepts V style dovetails. Is that right? -Thanks

      Unfortunately, not with this adapter. This adapter acts as a clamp to allow a piggyback scope ring or camera attachment to grab onto either a Losmandy or Vixen dovetail on top of your telescope. Depending on your mount, you may want a dovetail adapter o

    • Dear sir/madam, I would like to ask about the Losmandy dovetail adapter - https://www.optcorp.com/losmandy-dovetail-adapter-d-v-series.html Are all the holes threaded? What kind of threads are there? I suppose that the center hole is standard 1/4" phot

      Good day and thanks for asking. We don't have any in stock at the moment so I can't actually look at one but I don't believe any of the holes are threaded. They are 1/4 holes but they are meant to run a 1/4-20 SHCP up through the bottom into something li
