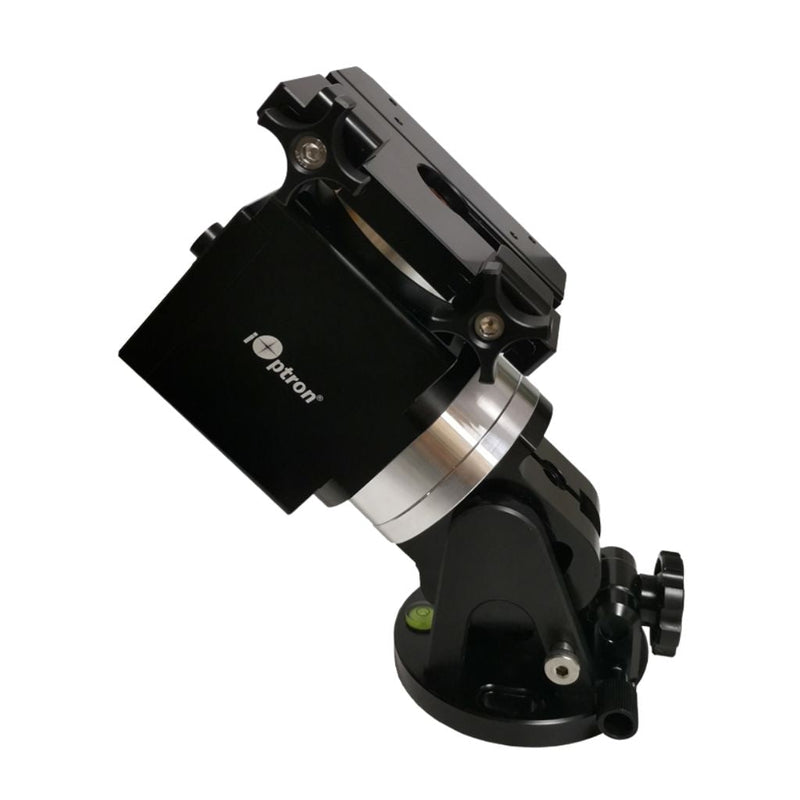

iOptron HAE29 Strain Wave AZ/EQ Mount

Brand: iOptron

SKU : IO-HE292

- Read
Looking for a iOptron HAE29 Strain Wave AZ/EQ Mount? Shop this product at Agena Astro by clicking the SHOP NOW button!
SHOP NOW
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • Imagine a mount head weighing in at less that 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft
  • State of the art strain wave gear technology
  • Equatorial and alt-azimuth operation

Product Details

  • Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE29 and HAE29EC! These light weight, high payload little titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at less that 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.

    Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

    A HAE29 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

    The HAE29EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

    Features:

    • Advanced strain wave gear system technology
    • Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.6 kg (7.93 lbs, include dovetail saddle)
    • CNC machined
    • Unique friction brake to safely stop movement during a planned or unplanned power interruption
    • 360 second gear period
    • Go2Nova® hand controller with ~212,000 object database
    • iPolar electronic polar scope for easy and accurate polar alignment
    • Customer cable management system ready
    • Dual saddle (Vixen and Losmandy-D styles)
    • Built in zero position search and locator
    • Power down position and location memory
    • Integrated ST-4 autoguiding port
    • Built-in Wi-Fi (via hand controller)
    • USB port for firmware upgrade and computer control
    • Carrying case
    • Two year warranty
  • specifications

    ComputerizedComputerized
    Database212000 Objects
    Drive TypeStrain Wave
    EncodersNo
    Free ShippingYes
    Head DesignEquatorial & Altitude Azimuth
    Instrument Capacity29.7 lb
    Latitude Range0 to 90 Degrees
    Mount Head Weight7.9 lb
    Periodic Error Correction (PEC)Yes
    PortsDC12V 5A
    PortsST4
    PortsUSB
    Power Supply100 to 240V
    Telescope ConnectionDual Vixen & Losmandy
    Warranty2 years
  • included items

    • HAE29 mount head
    • Go2Nova® hand controller
    • Carrying case
    • AC power adapter
