All iOptron CEM40 Computerized German Equatorial Telescope Mount

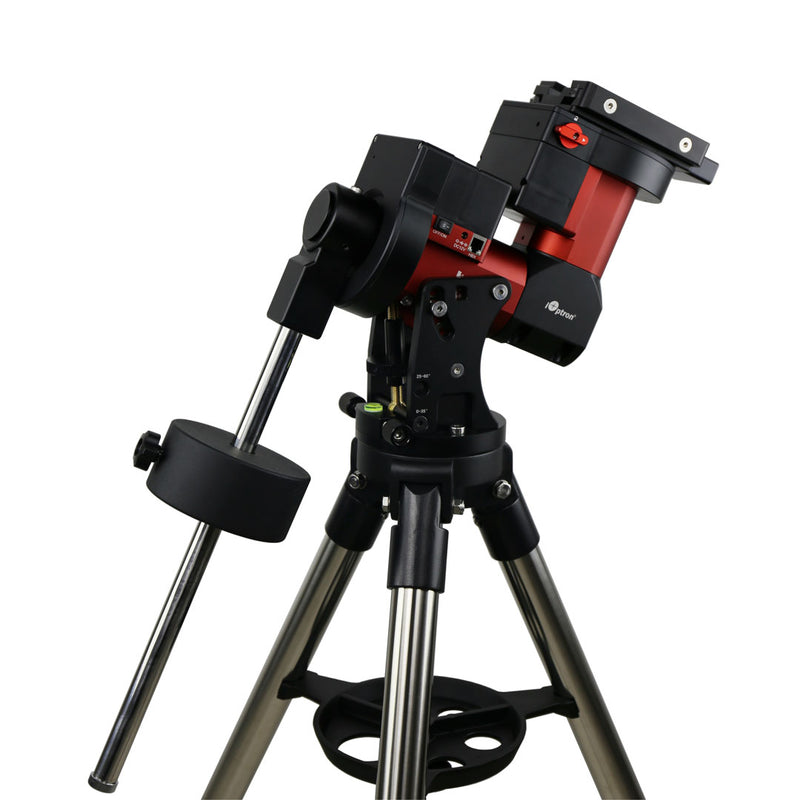

iOptron CEM40 Computerized German Equatorial Telescope Mount

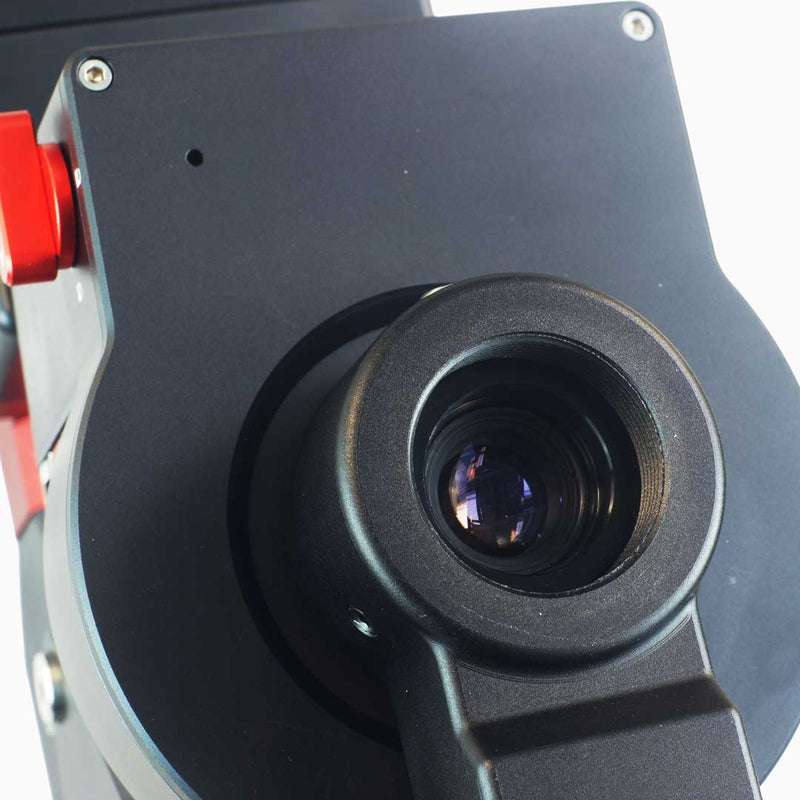

iOptron CEM40 iPolar Camera

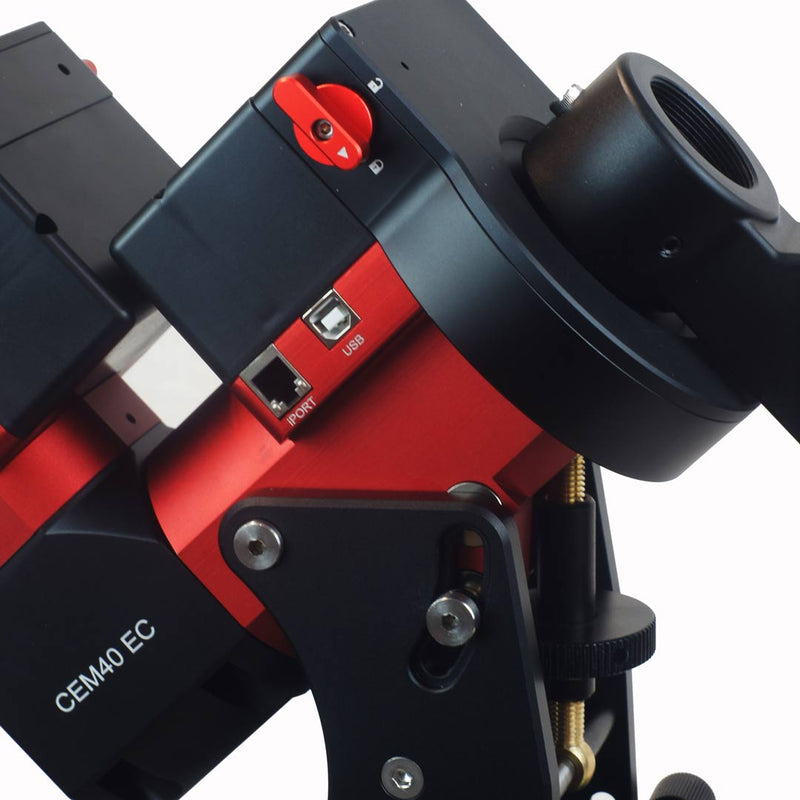

iOptron CEM40 Computerized German Equatorial Telescope Mount Ports

iOptron CEM40 Computerized German Equatorial Telescope Mount

SKU : IO-7400A

- Read

  • Free Shipping

  • In Stock

$2,448

Price Match Guarantee

Add to Wishlist

Got questions? Click for live chat

  • This ultra-quiet center-balanced equatorial mounts delivers precision tracking for superb astrophotography results
  • Built in iPolar Polar Alignment Camera
  • 40-pound Payload
  • Weighs only 15.8-pounds
  • Internal Cable management systems allows to connect an autoguider, and camera via USB, 12V Power, and ST-4 ports on the saddle

Product Details

  • Introducing the CEM40, the next-generation in center-balance equatorial mounts.

    With a red anodized CNC body, it looks sharp however its beauty is more than skin deep. The head weighs in at only 15.8-pounds yet can support a payload of up to 40-pounds. An integrated electronic polar finder scope (iPolar) ensures accurate alignment even at times when the pole star is obscured. Large levers on its quick-lock drive engagement system make it easy to snap its gears into place even when wearing gloves. There's little chance of your cables getting snagged with the CEM40's internal cable management system.

    The CEM40 and CEM40EC incorporate iOptron's new, patent- pending Universal Self-Centering Saddle (USCS) it accommodates Losmandy and Vixen style dovetail plates. The CEM40 utilizes their ultra-quiet low power consumption stepper motor drive systems. Other features such as onboard GPS, 359,000+ object library with star identification make these extremely portable and capable mounts sure winners.

    iOptron SKU: C401A1


  • specifications

    ComputerizedComputerized
    Counterweight10 lb
    Database359000 Objects
    DEC Worm Wheel110mm Diameter 216 Teeth
    Drive Typeprecision stepper motor
    Free ShippingYes
    Head DesignEquatorial
    Instrument Capacity40 lb
    Latitude Range0 to 60 Degrees
    Mount Head Weight15.8lb
    PECYes
    PortsST_4
    PortsUSB
    RA Worm Wheel110mm Diameter 216 Teeth
    Slew Speed4.5°/sec (1080x)
    Telescope ConnectionDual Vixen & Losmandy
    Tracking AccuracyLess Than 7 Arcseconds
    Tripod Weight15 lb

  • included items

    • Mount Head
    • Counterweight Shaft
    • 10-pounds Counterweight
    • Go2Nova 8407 Hand controller
    • 1.5-inch Tripod



Product Reviews

Customer Reviews
4.3 Based on 3 Reviews
5 ★
33%
1
4 ★
67%
2
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
  • paces
  • quality
  • mount
  • clouds
  • accuracy
  • base
  • ASIAir Pro
  • backlash
  • power
  • bolts
NP
01/05/2021
Nghia P.
United States United States

Well made mount.

Bought it to upgrade from the old LXD-55 Mount. While have not had many chances to put it through its paces due to clouds, it seems to be very well made and of quality. Pointing accuracy coupled with the ASIAIR Pro is accurate and fast. Internal iPolar camera seems to be accurately mounted also. True to the manufacturer’s claim of tracking accuracy. 3-4 mins of unguided exposure shows round stars. However. It would have been a 5 stars review had it been a little easier to access the Azimuth screws on the base. Other than that, it’s been good so far. Cable manager has cut down my rig to just 2 hanging cables. One for power from the battery pack. The other is the USB from ASIAIR to the mount.

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
NP
12/27/2020
Neil P.
United States United States

Solidly built mount

The fit and finish of the mount seems to be well constructed and of good quality. Have had may opportunities to put it though its paces due to rain and clouds in the area. So far, the accuracy of this mount is good coupled with the ASIAir Pro. There is virtually no backlash in the gears. The only drawback of this mount is the Az mounting bolts on the base. They are a pain to install if the head is to be removed and remounted every session.

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
PM
08/14/2020
Patrick M.
United States United States

Great mount

I wanted to get an EQ6 but they are not in stock anywhere so I got this mount instead. I am very happy with the performance, the iPolar made polar Alignment easy and extremely accurate. The wiring setup is perfect for someone that wants to do a lot of computer automation, USB right into the mount and not through the hand controller. With plate solving I feel less bad about skipping the encoder version. I am getting better than arc second tracking with a guide scope. Love it, works, and the finish is beautiful.

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
