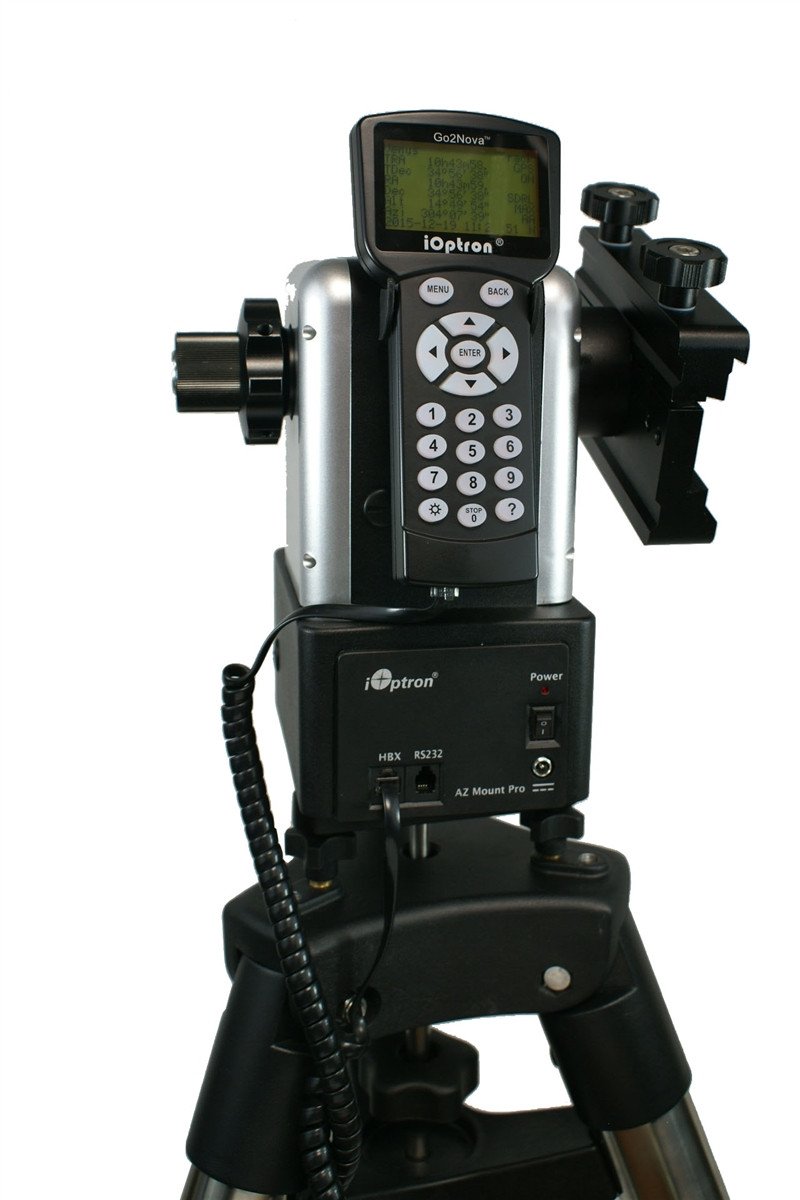

iOptron AZ Mount Pro with LiteRoc 1.75-Inch Tripod

SKU : IO-8903

- Read
  • Free Shipping

  • More on the Way in 14 - 28 Days

Add to Wishlist

Got questions? Click for live chat

Product Details

  • There are few words when describing the iOptron AZ Mount Pro with LiteRoc Tripod set up: "level and go". Using its built-in precision level indicator, the operator simply levels the mount and turns on the power; this capable computerized alt-azimuth telescope mount takes it from there. Utilizing the on board 32 channel GPS receiver and built-in position and angular detection sensors; the AZ mount Pro calculates its global position as well as the telescope orientation. Automatically the mount slews the instrument to an easily identifiable bright object in the night sky. The user need only confirm a bright object is in the center of the view, to activate tracking and GOTO functionality.

    The LiteRoc tripod features a 1.75-inch upper leg section with a 1.5-inch diameter lower section (same as a 2-inch tripod), resulting in a lighter tripod with stability similar to a 2-inch.  It also has improved leg cuffs and sockets for more rigidity and redesigned leg lock levers.



    Features:

    • On board rechargeable lithium ion battery for up to 10 hours of use
    • 33 lb primary payload and 10 lb secondary payload capacity, with a mount weighing only 13 lb
    • Whisper quiet low-power consumption stepper motors
    • Go2Nova 8407 hand controller featuring 212K+ object library with an 8-line illuminated LCD screen
    • Zero backlash driver system
    • Built-in Wi-Fi adapter for full ASCOM, iOptron Commander and Sky Safari wireless control
    • Serial port for computer control and firmware upgrades
    • Retractable counter weight shaft
    • Position memorization at power interruption
    • Die-cast aluminum body
    • 6-inch dual dovetail saddle (Losmandy/Vixen styles)
    • Stands a mere 10 inches tall (mount head only)
    • Built-in 32-channel GPS receiver
    • Automatic position and angular detection sensors
    • Aluminum Hard Case
    • 1X 10 lb counterweight included
    • 1.75-Inch LiteRoc tripod included
    • Two year limited warranty (90 day for battery)
    • Optional pier/ Tri-pier



    Technical Specs

    Mount AltAzimuth Mount
    Body Materials Die-cast Aluminum
    System GoToNova
    Primary Payload 33 lb
    Secondary Payload 10 lb
    Mount Weight 13 lb (including CW shaft and battery)
    Gear Aluminum worm wheel/ Brass worm gear
    Motor 128X microstep stepper motor
    Transmission Sychronous belt
    Resolution 0.1 arc second
    Tracking Automatic
    Tracking Rate celestial, solar, lunar and user defined
    Hand controller Go2Nova 8407 with over 212,000 object database
    Slew Speed 1x, 2x ,8x ,16x, 64x ,128x, 256x ,512x and MAX(about 10 deg./ sec, 2400X)
    GPS 32-channel GPS
    Sensors Position and angular detection
    Level indicator Yes
    Dovetail Saddle 6 Inch Losmandy/ Vixen dual saddle
    Optional secondary Vixen saddle
    Counterweight 10 lb
    Battery Built-in rechargeable Li-ion battery (11.1V, 4.4AH)
    Battery Running Time 10 hour at 20 deg.C
    Battery Charger 100/ 240V AC input, 12.6V DC 2000 mA output (Included)
    Wireless Control Yes, full control via built-in Wi-Fi adapter
    Firmware Upgrade Yes, via serial port
    Computer Control Yes. PC via ASCOM and Mac/ Tablet/ Smartphone via Wi-Fi
    Tripod 1.75-Inch LiteRoc
    Warranty Two year limited warranty for mount
    90 day limited for battery

    Manual:
    Quick Start Guide
    Instruction Manual

    Firmware:
    Download Latest Firmware

    iOptron Telescope ASCOM Driver:
    Install ASCOM Driver and Commander 5.0





    OPT Product Number: IO-8900

  • specifications

    ComputerizedComputerized
    Free ShippingYes
    Head DesignAltitude Azimuth
    Instrument Capacity33 lb
  • included items

    There are few words when describing the iOptron AZ Mount Pro with LiteRoc Tripod set up: "level and go". Using its built-in precision level indicator, the operator simply levels the mount and turns on the power; this capable computerized alt-azimuth telescope mount takes it from there. Utilizing the on board 32 channel GPS receiver and built-in position and angular detection sensors; the AZ mount Pro calculates its global position as well as the telescope orientation. Automatically the mount slews the instrument to an easily identifiable bright object in the night sky. The user need only confirm a bright object is in the center of the view, to activate tracking and GOTO functionality.

    The LiteRoc tripod features a 1.75-inch upper leg section with a 1.5-inch diameter lower section (same as a 2-inch tripod), resulting in a lighter tripod with stability similar to a 2-inch.  It also has improved leg cuffs and sockets for more rigidity and redesigned leg lock levers.



    Features:

    • On board rechargeable lithium ion battery for up to 10 hours of use
    • 33 lb primary payload and 10 lb secondary payload capacity, with a mount weighing only 13 lb
    • Whisper quiet low-power consumption stepper motors
    • Go2Nova 8407 hand controller featuring 212K+ object library with an 8-line illuminated LCD screen
    • Zero backlash driver system
    • Built-in Wi-Fi adapter for full ASCOM, iOptron Commander and Sky Safari wireless control
    • Serial port for computer control and firmware upgrades
    • Retractable counter weight shaft
    • Position memorization at power interruption
    • Die-cast aluminum body
    • 6-inch dual dovetail saddle (Losmandy/Vixen styles)
    • Stands a mere 10 inches tall (mount head only)
    • Built-in 32-channel GPS receiver
    • Automatic position and angular detection sensors
    • Aluminum Hard Case
    • 1X 10 lb counterweight included
    • 1.75-Inch LiteRoc tripod included
    • Two year limited warranty (90 day for battery)
    • Optional pier/ Tri-pier



    Technical Specs

    Mount AltAzimuth Mount
    Body Materials Die-cast Aluminum
    System GoToNova
    Primary Payload 33 lb
    Secondary Payload 10 lb
    Mount Weight 13 lb (including CW shaft and battery)
    Gear Aluminum worm wheel/ Brass worm gear
    Motor 128X microstep stepper motor
    Transmission Sychronous belt
    Resolution 0.1 arc second
    Tracking Automatic
    Tracking Rate celestial, solar, lunar and user defined
    Hand controller Go2Nova 8407 with over 212,000 object database
    Slew Speed 1x, 2x ,8x ,16x, 64x ,128x, 256x ,512x and MAX(about 10 deg./ sec, 2400X)
    GPS 32-channel GPS
    Sensors Position and angular detection
    Level indicator Yes
    Dovetail Saddle 6 Inch Losmandy/ Vixen dual saddle
    Optional secondary Vixen saddle
    Counterweight 10 lb
    Battery Built-in rechargeable Li-ion battery (11.1V, 4.4AH)
    Battery Running Time 10 hour at 20 deg.C
    Battery Charger 100/ 240V AC input, 12.6V DC 2000 mA output (Included)
    Wireless Control Yes, full control via built-in Wi-Fi adapter
    Firmware Upgrade Yes, via serial port
    Computer Control Yes. PC via ASCOM and Mac/ Tablet/ Smartphone via Wi-Fi
    Tripod 1.75-Inch LiteRoc
    Warranty Two year limited warranty for mount
    90 day limited for battery

    Manual:
    Quick Start Guide
    Instruction Manual

    Firmware:
    Download Latest Firmware

    iOptron Telescope ASCOM Driver:
    Install ASCOM Driver and Commander 5.0





    OPT Product Number: IO-8900
