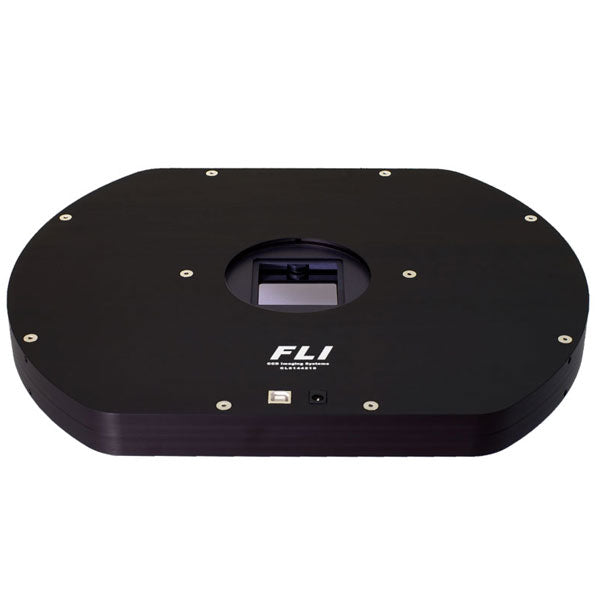

FLI 14 Position Dual Filter Wheel

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

• This dual filter wheel from FLI provides the basis for stunning, crystal clear astrophotography images. It is precision engineered with a super accurate, no-slip drive chain and stepper motor. You'll notice that the large diameter pivot pin and bushings are professionally ground and matched for smooth and quiet operation, leaving you to enjoy the night sky peacefully. FLI color filter wheels do not use any internal lights for homing, so your images are protected from stray light interference.

  Specs

  • Number of Filter Wheels: 2
  • Filter Positions: Twelve + Two Open Positions
  • Recommended Filter Size (+/- 0.125 mm): 2" or 50 mm diameter
  • Filter Type: UNMOUNTED ONLY
  • Filter Thickness Range: 1.0 - 5.0mm
  • Camera Side Connection: 3.43" CL TZA
  • Optical Side Connection: 3.43" CL TZA
  • Internal Wheel Material: Aluminum
  • Interface: USB
  • Power: 12V
  • Weight: 4.3 lbs
  • See PDF drawing for more information

• specifications

  Back Focus	27.9 mm
  Camera/Eyepiece Connection	3.43" CL ZTA
  Scope Side Connection	3.43" CL ZTA

• included items

  • Dual filter wheel that has 12 positions and 2 additional, open positions
  • Smooth, quiet operation night after night
  • Accepts ONLY unmounted filters
