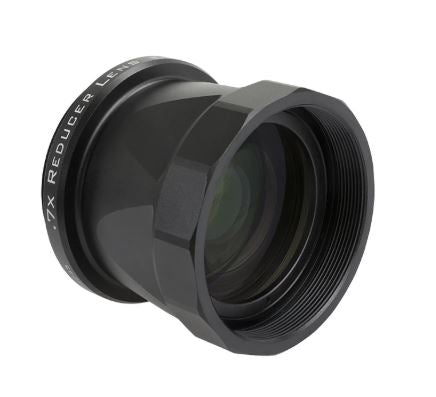

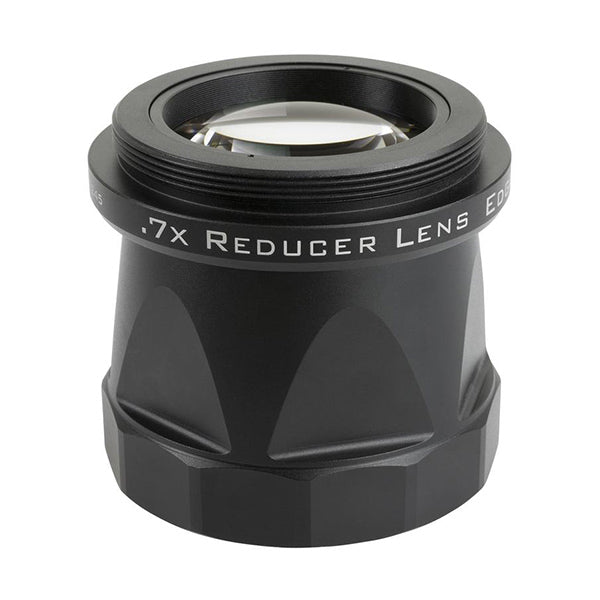

Celestron 9.25” .7x Edge HD Focal Reducer

SKU : CE-94245

- Read
  • Free Shipping

  • Extended Backorder for 2-3 Months

Add to Wishlist

Got questions? Click for live chat

  • 4-Element Optical Design.
  • 42 mm Corrected Image Circle.
  • 146 mm Back Focus.
  • One full F-Stop Faster than f/10.
  • Increase Field-of-View by 43%.
  • Blackened Edges Reduce Internal Reflections.
  • NOT AVAILABLE UNTIL LATE JANUARY 2021

Product Details

  • Celestron’s 9.25-inch 0.7x EdgeHD Focal Reducer makes the 9.25-inch Edge HD OTA even more versatile than ever, this reducer dramatically increases your field-of-view while also increasing the brightness of your image whether you’re using it for visual use or astrophotography.

    FEATURES OF THE CELESTRON 9.25 EDGEHD FOCAL REDUCER AT A GLANCE

    • 4-element optical layout designed specifically for the EdgeHD 9.25-inch.
    • Maintains the same back focus as when used at f/10.
    • One full F-Stop faster than f/10.
    • Increases the field of view by 43%.
    • Lanthanum Glass Elements.
    • Fully multi-coated lens elements.
    • Blackened edges.
    • Threads directly onto the 3.25-inch threads of the EdgeHD optical tube.
    • Clear aperture.
    • Machined aluminum housing.
    • Threaded metal covers for both ends of the lens assembly.
    • Fastar compatibility and f/2 imaging with optional accessory.

    Astrophotography Elements

    All 0.7x EdgeHD Focal Reducers cut the exposure time in half from the f/10 configuration, capturing twice as much data in the same amount of time! Your focal reducer will shorten the focal length of the 9.25-inch EdgeHD from 2350 mm to 1645 mm, which will also speed up the focal ratio from f/10 to f/7.
    The corrected image circle for this focal reducer is 42 mm, which is large enough to illuminate a full-frame camera sensor. You will not need to change adapters or sensor spacing as this reducer maintains the same 146 mm backfocus as the 9.25-inch EdgeHD without the reducer. It also uses the same 3.3 to 16/tpi threading found on the rear of the OTA.

    Visual Elements

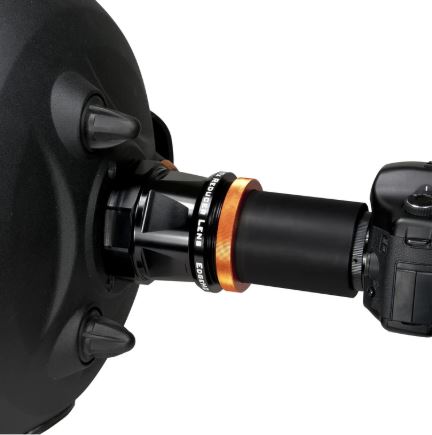

    Since this 0.7x EdgeHD Focal Reducer doesn’t change the backfocus of the telescope and has the same thread type as the rear cell of the OTA, you can attach the 2-inch mirror diagonal that comes with your Edge OTA. All the eyepieces that you own will work just the same, only now you will have a wider field of view and the image in eyepieces will be substantially brighter.

  • specifications

    Back Focus146mm
    Camera/Eyepiece Connection3.3"/16 TPI
    Free ShippingYes
    Glass Type"Rare Earth" Lanthanum
    Image Circle42mm
    Warranty2 Year Warranty
  • included items

    • 9.25-inch 0.7x Edge HD Focal Reducer.
