- Digital Microscope with an LCD Viewing Screen
- Built-in 5MP Digital Camera
- 3 Lens Turret (4x, 10x, and 40x mag.)
- 10x mag. Camera Sensor
- 4x Digital Zoom for magnification up to 1600x

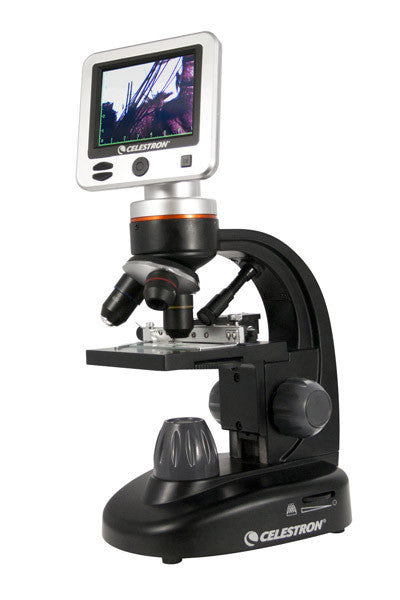

Celestron LCD Digital Microscope II
The LCD Digital Microscope II is a professional biological microscope at an affordable price. Change powers from 40x to 100x to 400x (up to 1600x with digital zoom) with a turn of the 3-position rotating lens turret. The large 3.5 Inch Color LCD screen display rotates 180 degrees so you can easily share your viewing with others. For an even bigger audience, you can use the TV output to display on a television or projector. With a built-in true 5MP digital camera and included 1GB SD card, it's never been easier to capture stunning images and transfer them to your PC.
Celestron LCD Digital Microscope II Features...
- LCD Screen: Full color 3.5 Inch TFT LCD screen with onboard software
- Stage: Fully adjustable mechanical stage
- 3 Achromatic Objective Lenses: 4x, 10x, and 40x lenses on rotating turret
- Capture and Save Still Images and Video: Built-in 5MP sensor and included 1GB SD Card
- TV Output: Use the included AV cable with an external monitor, projector, or TV screen
A Few of the Celestron LCD Digital Microscope II Specifications...
- Digital Camera: 5MP CMOS Sensor, 10x magnification in lieu of eyepiece
- LCD Monitor: 3.5 Inches (90 mm) with 4x Digital Zoom - High definition touch digital TFT display; Resolution - 320 x 240 pixels, Contrast ratio - 300; Color Support - 262K colors, Brightness/Luminance - 430 cd/m2
- Objectives: Achromatic 4X, 10X, 40X
- Memory: SD card slot with 1G SD card included (Supports up to 32G)
- USB Cable: 1.5 m, 2.0 USB
- Filter Wheel: 6 Position - Red, Blue, Green and 1 mm, 3 mm, and 6 mm apertures
- Nosepiece: 3 positions with click stop
- Illuminators: Upper and Lower, Built-in adjustable LED- DC 5V, 2W through about 3W
- Condensor: Numerical Aperture (N.A.) is greater than 0.65
- AC Adapter: Input Universal 100 to 240Volt 50/60HZ
OPT Product Number: CE-44341
- LCD Digital Microscope II
- Full Color 3.5 Inch TFT LCD Screen
- Built-In 5MP Digital Camera with a 10x mag. sensor
- Adjustable Mechanical Stage
- 3-Lens Turret/ 4x, 10x, 40x mag. lenses
- 1 GB SD Card
- TV output cable
- Dust Cover
- Rugged Canvas Carrying Case with Shoulder Strap
- 5 Prepared Slides in a Hard Slide Case
- US AC Adapter, 100 to 240Vold, 50/60 Hz,
- 4 Plug International AC Adapters
- Software for PC
- 2 Year Warranty
-DC Requires 4 AA user-supplied batteries.
