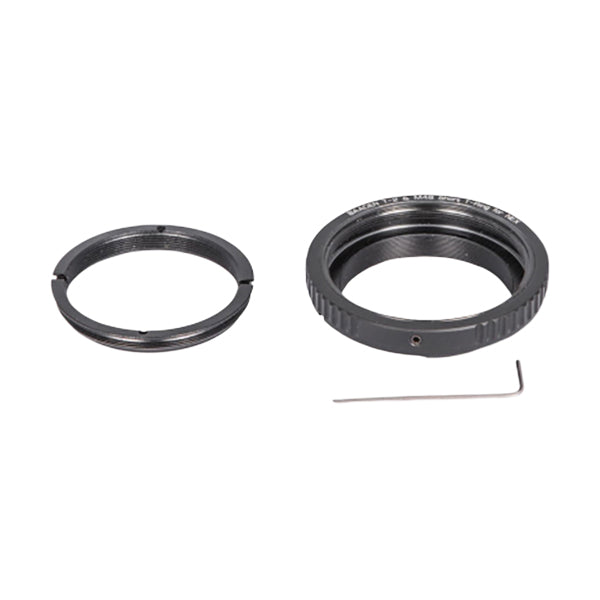

Baader Wide-T-Ring Sony E/NEX Bayonet

SKU : BA-TRING-S

- Read
  • Free Shipping

  • More on the Way in 14 - 28 Days

Add to Wishlist

Got questions? Click for live chat

  • This is shorter than a normal T-ring, known as a T-minus ring.
  • Please note you may need additional spacers to reach normal 55mm back focus or other specified lengths.

Product Details

  • The Sony Alpha 7 cameras – especially the 7S and 7SII – are very interesting for astronomical purposes because of their high sensitivity, short backfocus light weight and very compact body dimensions. Badder has produced a very short T-adapter for Sony E-Mount/NEX bayonet, which adds only 8.3 mm onto the 18 mm backfocus of the camera housing. This enables an adaptation to all backfocus-critical systems like HyperStar or fast Newtonians. All other T-adapters with T-2-thread which are commercially available at the moment do vignett the light path. We have encorporated the well-tested system of our Protective EOS-T-Ring into the Sony-adapter: Besides the T2-thread, the design also includes an M48-thread – and even bigger – the outer part of our ultrawide S52-clamping system. We will soon offer a 2" nose-piece with S52-ring-clamp. This 2"-nose-piece does provide you with an unobstructed clear inner diameter of 46mm and eliminates vignetting with the Sony Alpha 7 cameras even with very fast optical systems. The Baader SONY-E-Mount/NEX bayonet T-Adapter already got introduced in our last newsletter.

  • specifications

    Back Focus8.3mm
    Camera/Eyepiece Side ConnectionFemale M48x0.75
    Free ShippingYes
    Scope Side ConnectionMale Sony E
  • included items

    • This is shorter than a normal T-ring, known as a T-minus ring.
    • Please note you may need additional spacers to reach normal 55mm back focus or other specified lengths.
