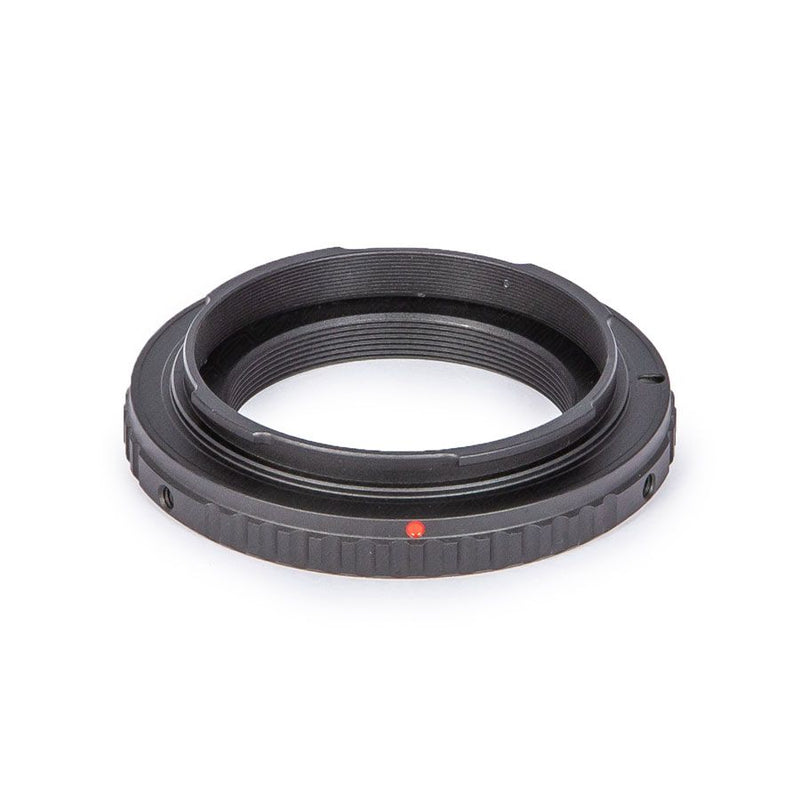

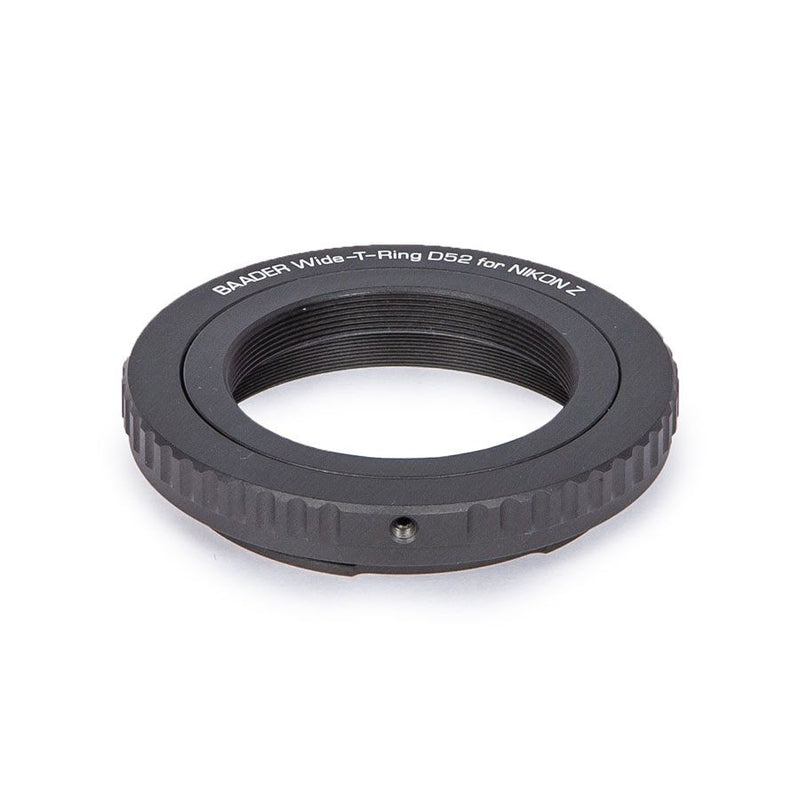

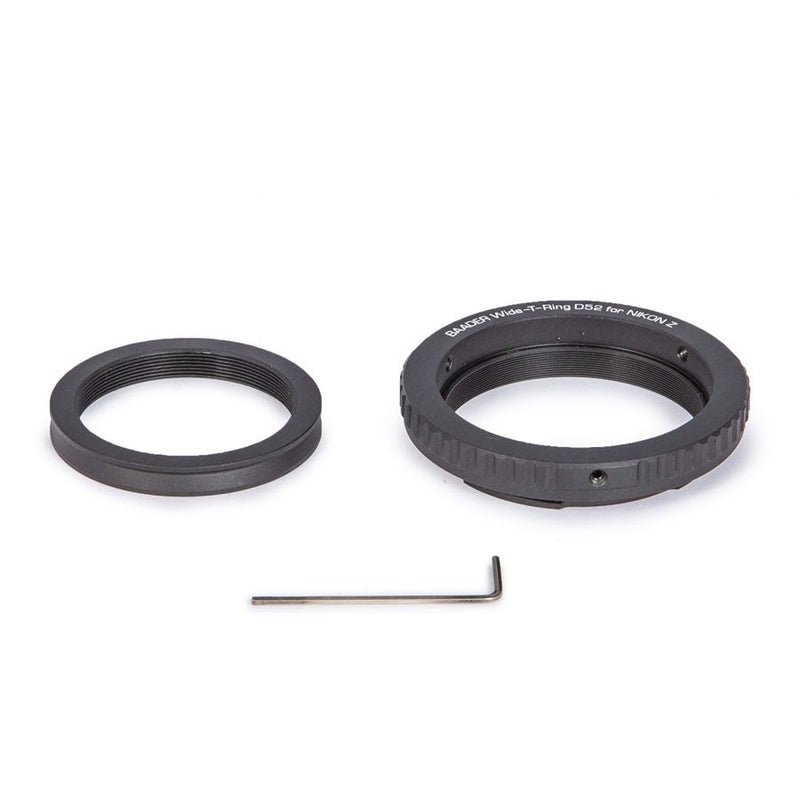

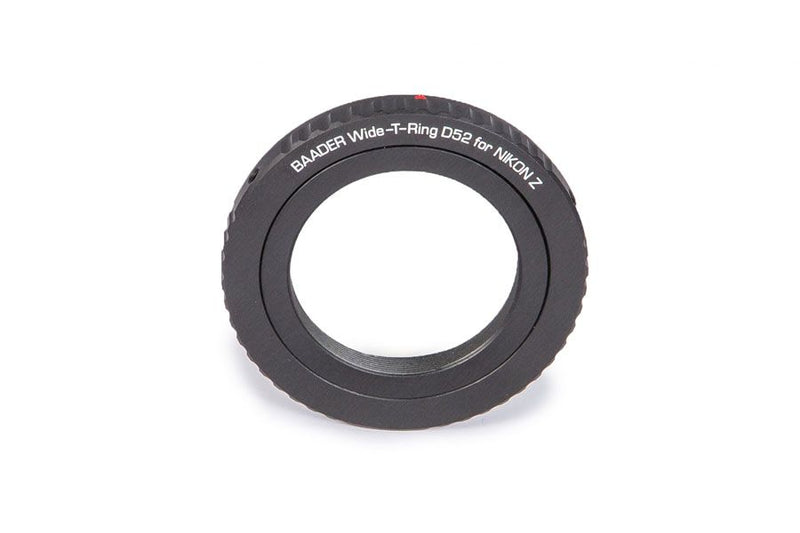

Baader Wide-T-Ring Nikon Z to connect Nikon Z cameras on the Astro T-2 system and the S52 dovetail.
All Baader Wide-T-rings have an S52 dovetail in addition to the inserted T-2 ring. This allows the T-ring to be modified to an M48 female thread using the S52 / M48 adapter, or to use the S52 barrel without the T-2 reduction. With the S52 / M68 adapter, the Wide-T-Ring can be directly attached to an M68 male thread to securely fasten your camera to the widest possible aperture.
All Baader Wide T-rings can be directly adapted to an UFC (Universal Filter Changer) with the optional Baader UFC S52 dovetail camera-adapter, in order to change different filter sizes directly in front of the camera sensor. Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
On the camera side: Nikon Z bayonet
Telescope side: S52 dovetail clamp incl. S52/T-2 internal thread with 0.75mm pitch
