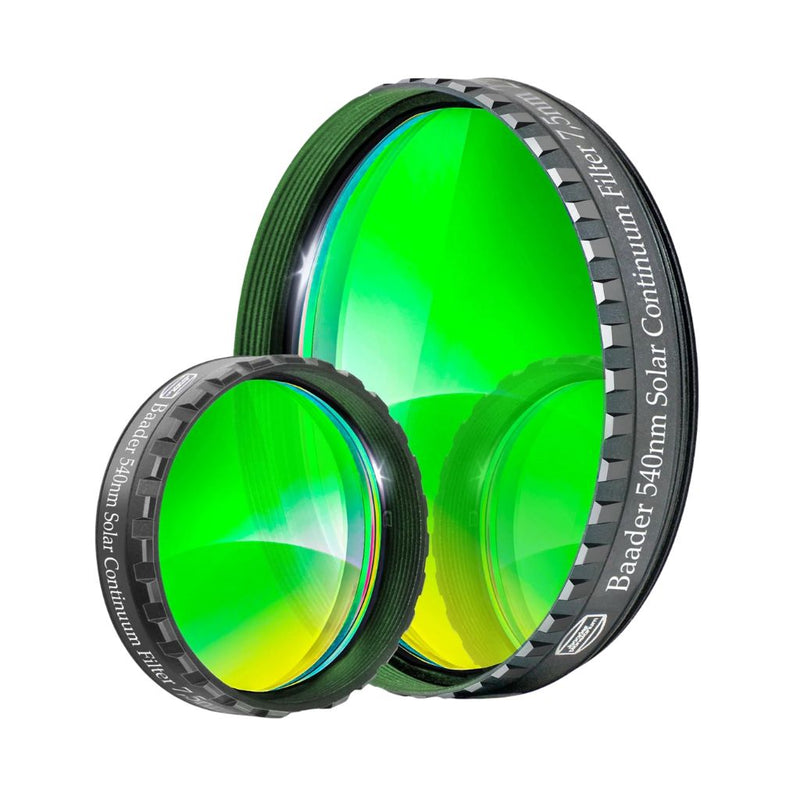

Baader Solar Continuum Filter 7.5nm - 2"

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

• Baader 7.5nm Solar Continuum Filter – for Visual and Photographic Observations of the Sun

  The Solar Continuum Filter is practically a narrow band photosphere filter for solar observation in white light. It provides the highest contrast in the photosphere of the sun. The filter works as a monochromator: suppressing the effects of the atmospheric turbulence and delivering images that are significantly sharper.

  Lens systems - including those of apochromats, catadioptrics, or eyepieces - are traditionally optimized for the spectral range around 540nm, since this is where our eye has the highest sensitivity. This narrowband filter therefore blocks everything with the exception of the spectral range in which a lens optic works most sharply and with the highest contrast. The effect is greatest on achromatic lens telescopes; but there is also an effect on apochromatic telescopes, catadioptric systems, and even pure mirror systems by reducing air turbulence.

  As a monochromatic filter, it is ideal for use on monochromatic cameras and can even provide a tremendous gain on pure color systems.

  With a color camera, as with deep-sky narrow-band photography, it is less effective as only the green pixels are used. Thus, although you still benefit from the improved image sharpness of the telescope that is optimized for green wavelengths (and the reduction of the influences of air turbulence), with a color camera you cannot fully exploit the better image quality compared to monochrome cameras, as you are effectively working with reduced camera resolution.

  Compared to the previous model with a 10nm half-band-width, this filter has a half-band-width of only 7.5nm, which increases the contrast even more. It thus replaces both the previous Baader 10nm Solar Continuum filter and the stacked 1 ¼" filter #2458392. The single filter is so good that stacking is no longer necessary - the contrast gain of a single 7.5nm filter makes stacking unnecessary, and this performance is now also available in 1.25".

  The Baader 7.5nm Solar Continuum filter is also be included in the scope of delivery of the Cool Ceramic Herschel prism Mark II, which is in preparation.

  The Baader 7.5 nm Solar Continuum also offers all the advantages of the CMOS-optimized Baader filters:

  • Increased contrast, matched for typical CMOS quantum efficiency and s/n ratio
  • Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics Identical filter thickness to existing standards, with utmost care for parfocality
  • Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
  • Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
  • Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment

• specifications

  Bandpass	7nm
  Central Wavelength	540 nm
  Filter Shape	Round
  Filter Size	2"
  Filter Thickness	2mm
  Filter Type	Continuum
  Free Shipping	Yes
  Mounting	Mounted
  Transmission Range	535 to 545 nm
  Weight	0.13 lbs

• included items

  • Baader Solar Continuum Filter 7.5nm - 2"
