Astrozap Baader Film Solar Filter for 8" Schmidt-Cassegrain Telescopes

  • Sale
  • Regular price $109.00
  • ITEM #



Astrozap Baader Film Solar Filter for 8" Schmidt-Cassegrain Telescopes

Astrozap Baader Solar Filter for 8" SC Telescopes

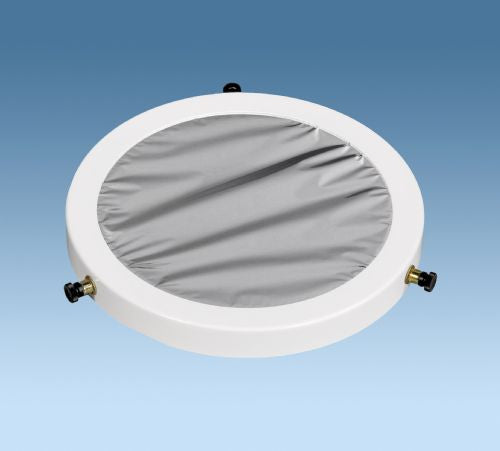

The filter cell that holds the Baader AstroSolarƒ??????????’?????????? film is constructed from lightweight, 18 gauge aluminum and is powder-coated white. The heavy duty threaded inserts and nylon thumbscrews will insure a secure fit on the front of your telescope's optical tube assembly.

With Baader AstroSolar film, the Sun will appear a neutral white, allowing you to see more detail, especially in the faculae regions, than competing solar films that produce a bluish or reddish image. Due to its neutral color balance, AstroSolar enables the use of various color (or interference) filters which allows the observer to concentrate on certain spectral passbands for investigations of different layers within the solar "atmosphere." The Astrozap Baader Solar Filter is essentially free from pinholes, since it is coated on both sides. This means that your chance of two pinholes overlapping each other would be extremely faint. Baader AstroSolar safety film has been approved for eye safety by the National Bureau of Standards in Germany, the PTB. Unlike any other Solar Filter on the market, AstroSolar is CE-tested according to EG-Norm 89/686 and EN 169/92 (notified body 0196). All processes connected to this product have been thoroughly tested. Coatings are inspected constantly for consistency to ensure your eye safety!

Astrozap Product Number: 1004

Additional Information

Filter Size9.75"
Fits Telescope OD Range of 9.3"
Full Aperture or OffFull Aperture
Glass or Film or HerschelMylar or Film Filter
Warranty1 Year Warranty
White Light Filter MaterialBaader Film

Questions & Answers

Ask a Question
  • i have an 8" od tube. i need a solar filter that will cover the 8"OD..but not the 9.25" that is too big. what is the ID of this white light filter az-1004

    The AZ-1004 has an ID of 235mm (9.25") and is usable on 225-235mm (8.85-9.25") OD tubes like the Meade and Celestron 8" SCTs. The AZ-1014 might be more appropriate with its compatibility for 193-204mm tubes (up to just over 8") - but this filter has a cl

  • Is this for visual observations or it is suited for the astrophoto and hence additional neutral filter might be needed for visual application? Thank you.

    This solar-filter is meant for both visual and photographic applications. It is safe for visual use, and provides more than enough image-intensity for modern digital cameras. The solar-filters and solar-films specifically noted as photographic are a car
