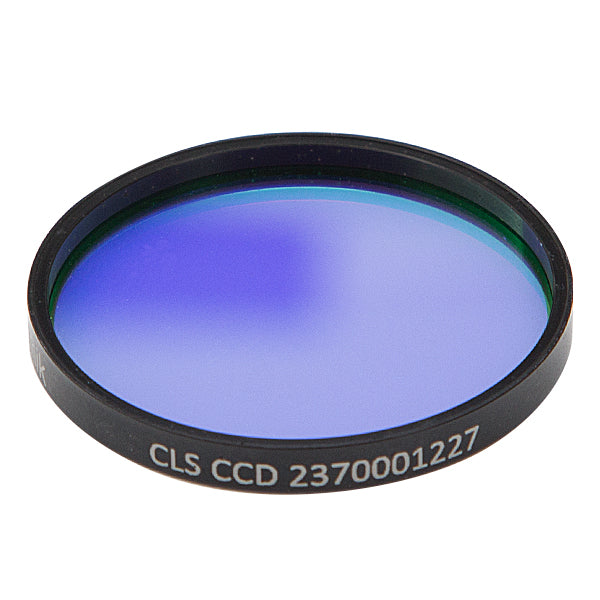

A 36 mm CLS CCD Light Pollution Filter
Mounted in Low Profile Non-Threaded Cell by Astronomik:
The Astronomik CLS CCD Filter is suitable under light-polluted skies for DSLR Cameras, which have been remodeled for astronomical use. The filter enhances the contrast between all deep-sky objects and the background.
The CLS-CCD Filter enhances the contrast between astronomical objects and the background. Due to the wider transmission curve compared to UHC filters, a greater amount of light will pass the filter. Stars will be less dimmed. This filter has been optimized to block as much spurious light as possible and simultaneously provide the best performance for useful light. A good filter for DSLR-, CCD- and film b/w-photography as well as observation of deep-sky-objects with telescopes or photo lenses of all aperture f/3 and above.
The filter blocks completely emission lines of artificial light sources like streetlights (e.g. sodium- and mercury-vapor) as well as the airglow. All important emission lines as well as the spectral range of the night-adapted eye are being passed. The supplementary IR-blocking layer allows the use for DSLR- and Webcams without an integrated IR-block filter.
Other uses for the Astronomik CLS CCD Light Pollution Filter include easier resolution of Double Stars and with the EOS-Clip model, photography with DSLR cameras is feasible even under extreme light-polluting conditions without shifting the white balance. The 1.25-inch and 2-inch socket models can be used for observations from light-polluted areas. If you plan to create color images from emission line data, our CLS-CCD filter is a great choice for the Luminance channel.
Now Mounted in Low Profile Non-Threaded Cell: Sometimes unmounted filters can be hard to handle. The smaller diameters, such as this 36 mm CLS CCD filter, can be especially difficult to pick up and insert or remove from the filter wheel, and that can lead to possible damage as well as unwanted reflections from incorrectly installed filters. Astronomik has solved this problem by mounting their 31 mm and 36 mm filters in a low profile (3 mm) non-threaded cell. O-rings, washers, or spacers are no longer required to hold the filter in place, and because the cell is only 3 mm thick, it works well in all appropriately sized filter wheels. Mounted 31 mm and 36 mm Astronomik filters will also play nice with unmounted versions in the same carousel.
Astronomik CLS CCD Light Pollution Filter - 36 mm Round Mounted Features:
- 92-percent transmission at 486 nm (H-beta)
- 92-percent transmission at 496 nm (OIII)
- 92-percent transmission at 501 nm (OIII)
- 97-percent transmission at 656 nm (H-alpha)
- Pass from 450 to 540 nm and from 640 to 690 nm
- Parfocal with other Astronomik filters
- Glass thickness: 1 mm
- Cell thickness: 3 mm
- Completely resistant against high humidity, scratches and aging effects
- Diffraction limited, the filter will not reduce the optical performance of your telescope!
- Astronomik filters are delivered in a high-quality, long lasting, filter box
OPT Product Number: AK-CLSCCD-36
