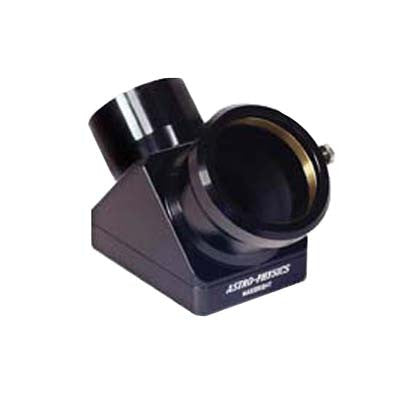

Astro-Physics Maxbright 2" Mirror Diagonal


- Read
  • More on the way in 14-28 days

Add to Wishlist

Got questions? Click for live chat

Product Details

  • The 2-Inch MaxBright Diagonal by Astro-Physics is designed with several unique features to provide optimum performance and years of use. Dielectric Coatings The Astro-Physics 2-inch diagonal has a very high-tech dielectric coating that was developed originally for military optics used in hostile environments such as blowing desert sand. There is no aluminum or other reflective metal used. The reflective surface consists of multiple layers of thin film oxides, similar to those used in anti-reflection coatings. The coatings are deposited using a sophisticated low-stress deposition method. Advantages of the Astro-Physics Dielectric Coatings: Reflectivity -Reflectivity is above 99-percent over the entire 400 to 700 nm photo-visual range. Thin film coatings have extremely low surface scatter compared to aluminum or enhanced aluminum coatings. Dielectric coatings (if done right) will result in less scattered light. Examination with a laser source shows approximately a 5 fold reduction in surface scatter, a tremendous improvement over aluminum mirrors. Durability -The main advantage of a dielectric mirror coating (again, if done properly) is that the surface will be durable and will last for a lifetime. It will never tarnish and will be resistant to sleeks when cleaned. Mechanical Features:

    The diagonal is accurately square to the optical axis due to the CNC machined parts and special mounting method of the mirror. The baffles and flat black interior allow maximum contrast. It is threaded for 48 mm filters so that you can change eyepieces with ease without changing the filter.

    OPT Product Number: AP-PMDMAX


  • specifications

    Angle90 degree
    Diagonal Barrel Size2"

Product Reviews

Customer Reviews
4.8 Based on 5 Reviews
5 ★
4 ★
3 ★
2 ★
1 ★
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
    Gary L.

    Astro-Physics Maxbright 2" Mirror Diagona

    Excellent quality

    Ed F.
    United States United States

    Skywatcher EVO 150mm ED

    The perfect store for astronomy gear. Excellent personel.

    Joseph B.
    United States United States

    Diagonal upgrade for my TOA130

    Excellent, was packed great, fast shipping and works well with my TOA130, best views in a long time using the AP Diagonal and Abbe eyepieces. AP Maxbright is a well made quality diagonal.

    Antoine M.

    Astro-Physics Mirror Diagonal : two thumbs up !

    This diagonal is amazing, a marvel, an Astro-Physics ! Very well machined, robust, a very pleasant grip, elegant and most of all, with excellent reflectivity. Works great on a Celestron 11´´ Edge HD. And OPT sent me the item very quickly as usual. So many thanks to the OPT team !

    Lewis C.
    United States

    Astro-Physics Maxbright 2" Mirror Diagonal

    Too soon to tell; I only just received it. It didn't come with a 2">1.25" eyepiece adapter, as I thought it would. Also, in the advertising there is no mention of the degree of flatness. For these reasons, I only gave it 4 stars.
