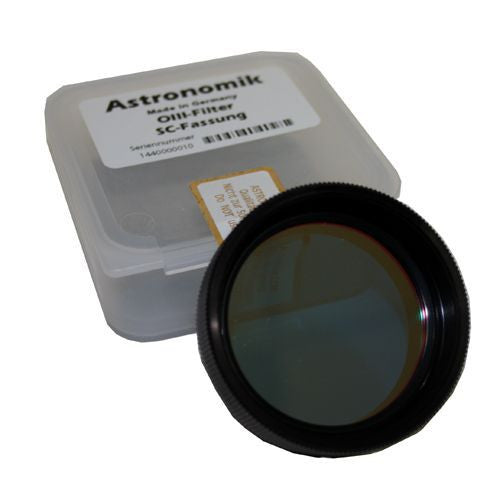

• The OIII Filter - SCT Rear Cell for Visual Use by Astronomik:

  From the start, the Astronomik OIII filter has been very specifically designed for the visual observation of gaseous and planetary nebulae. The extremely narrow pass band of the two OIII lines brings a substantial contrast gain to these lines even under best observation conditions. On faint super nova remnants and faint planetary nebulae the Astronomik OIII filter will often make the difference as to whether the object can be seen or not!

  The optimal aperture ratio for the use of the filter is 1:3 to 1:15 with apertures of more than 6-inch (150mm). Transmission losses and chromatic distortions, which arise with other filters, occur with Astronomik OIII filters only when extremely bright aperture ratios of 1:3 and more come into play. The Astronomik OIII filters thus can expand the view of dispersed objects, generally speaking, to the whole visual field of view of the eyepiece and are not limited to only the center of the eyepiece.

  Since enough light must be available to make use of the OIII filter it is best to use this filter with apertures of more than 6-inch (150mm). Smaller instruments do not gather enough light for meaningful and satisfying astronomical work. However, please note: Many experienced Deep Sky observers, with apertures of more than 10-inch (250mm), prefer using the OIII filter instead of the more versatile UHC filter. Due to the high optical quality of the Astronomik OIII filter substrate you will see the same needle-sharp stars as you would from your regular telescope.



  Astronomik OIII Filter - SCT Rear Cell for Visual Use Features:

  • Transmission of nearly 100-percent of both OIII lines
  • Complete blocking of all disturbing wavelength coverages
  • The ideal filter for telescopes 10-inch (25 cm) and larger
  • Main operational use: Planetary nebulas and super nova remnants
  • No moisture-sensitivity, no aging, and totally scratch-proof
  • Excellent carrier material - substrate is optically polished. The optical performance (resolution and contrast) of your telescope is not reduced in any way by the filter.
  • Parfocal with other Astronomik filters
  • Glass thickness: 1mm
  • Completely resistant against high humidity, scratches and aging effects
  • Diffraction limited, the filter will not reduce the optical performance of your telescope!
  • Astronomik filters are delivered in a high-quality, long lasting, filter box



  OPT Product Number: AK-OIII-SCT



• specifications

  Filter Type	OIII
  Free Shipping	Yes
  Peak Transmission	Nearly 100% for all OIII lines
  Shape	Round
  Warranty	10 Year Warranty
