TPO 6" f/6 Newtonian Reflecting OTA Telescope

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

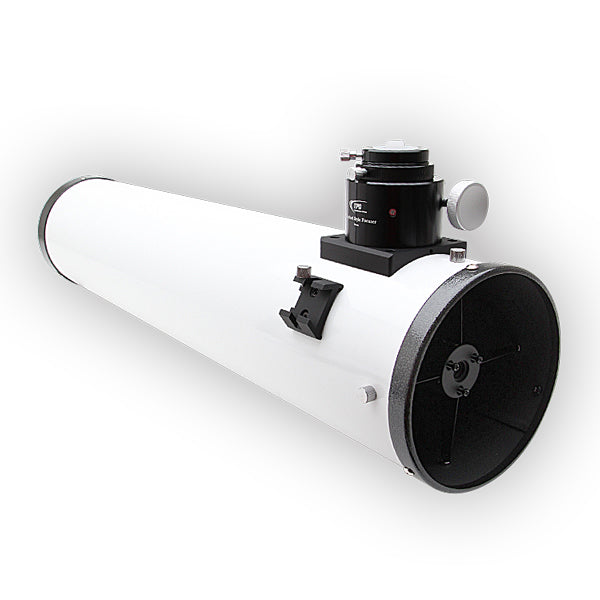

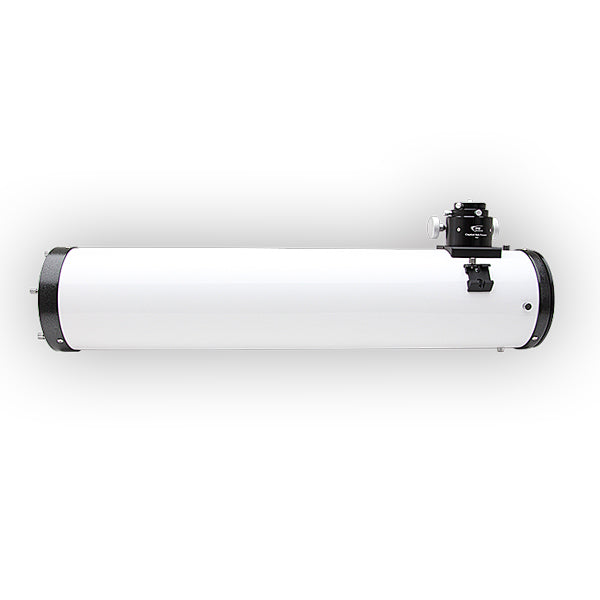

• The 6-inch f/6 Imaging Newtonian Telescope OTA and Focuser by Third Planet Optics (TPO)has optics carefully designed for wide field views and spectacular imaging. Get the performance of a Ritchey Chretien without the cost. Capture images with a DSLR, small webcam or all the way up to a large sensor CCD camera with this inexpensive yet effective Newtonian.

  Optics

  The optics on all TPO Imaging Newtonians consist of a parabolic primary mirror and an elliptical secondary, or diagonal. Made from B270 white water optical crown glass, a 91% aluminum coating is applied, and then over-coated with a layer of quartz for the ultimate in durability.

  Collimation

  The primary mirror cell is very sturdy, and has six collimation knobs that can be adjusted by hand with a push or pull of the knob. There's a perfectly centered dot in the middle of the primary so you know exactly where your laser collimator should point.

  Balance

  A single speed Crayford-style focuser rounds out this package. There is also a little knob on the bottom of the focuser that controls the tension, so that you can make adjustments depending on the weight or distribution of your load.

  The telescope comes with dual split-hinged mounting rings that are made of die-cast aluminum and felted on the inside to cradle the OTA without scratching. There are threaded holes on the underside of the rings that allow installation on either a Vixen-style (included) or Losmandy-style dovetail plate. The top of the rings is also drilled so that you can mount accessories.



  TPO 6 inch f/6 Imaging Newtonian Features

  • 2-inch single-speed linear Crayford-style focuser with 1.25-inch adapter.
  • 6x30 White Crosshair Finderscope with Bracket & Dovetail Shoe.
  • Dual hinged rings with Vixen-style dovetail.
  •  6x20 straight-through finderscope with a non-illuminated crosshair and 13 mm of eye relief.
  • A quick-release mounting bracket.
  • Length: 23 inches.

• specifications

  Aperture	152 mm (6")
  Camera/Eyepiece Connection	2" Nosepiece
  Dawes Limit	0.76 arcseconds
  Focal Length	916 mm
  Focal Ratio	f/6
  Highest Magnification	304x
  Light Gathering Power	472x
  Limiting Magnitude	14.7
  Optical Design	Newtonian
  Secondary Obstruction	45mm
  Tube Diameter	178mm
  Tube Length	840mm
  Tube Weight	14.3 lbs
  Warranty	2 Year Warranty

• included items

  • Aperture: 152 mm (6 inches).
  • Focal Ratio: f/6.
  • Focal Length: 916 mm.
  • 14.3 lbs.
  • Flat black interior for higher contrast.
