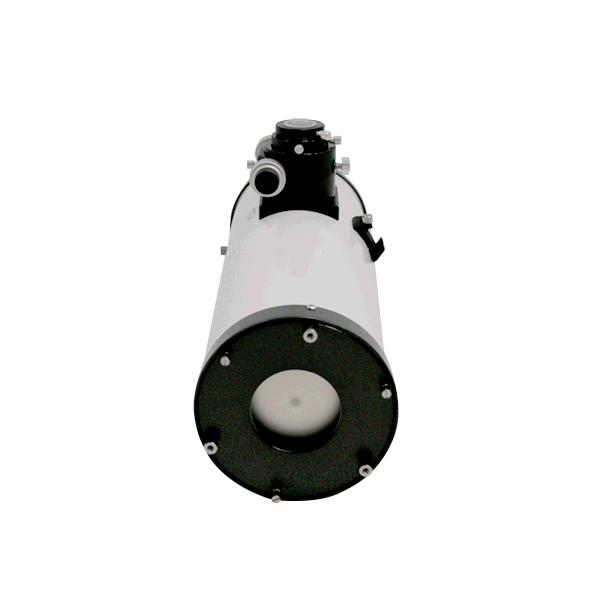

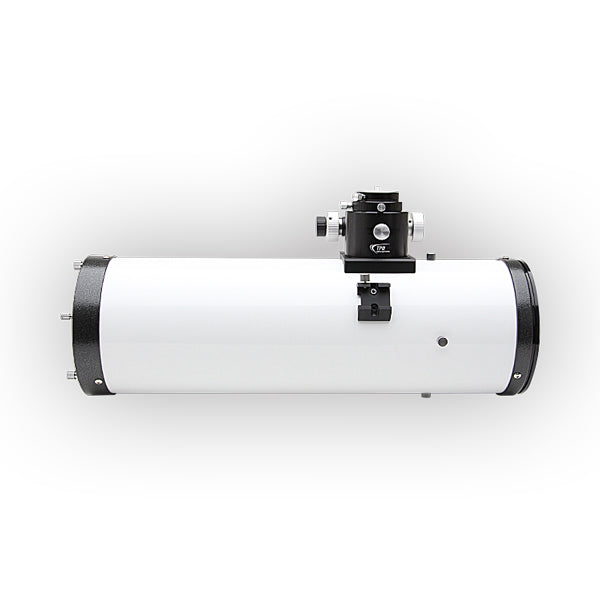

TPO 6" f/4 Newtonian Reflecting OTA Telescope

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

• The TPO 6-inch f/4 Imaging Newtonian OTA is a portable and affordable, excellent imaging scope. Like all TPO Imaging Newtonian's, the 6-inch model is an ideal scope for anyone looking to transition from visual astronomy into astro-imaging.

  It’s lightweight enough to be a viable choice with almost any equatorial mount, meaning that you have a wide array of options in terms of mounting and tripod selection.



  Optimum Performance

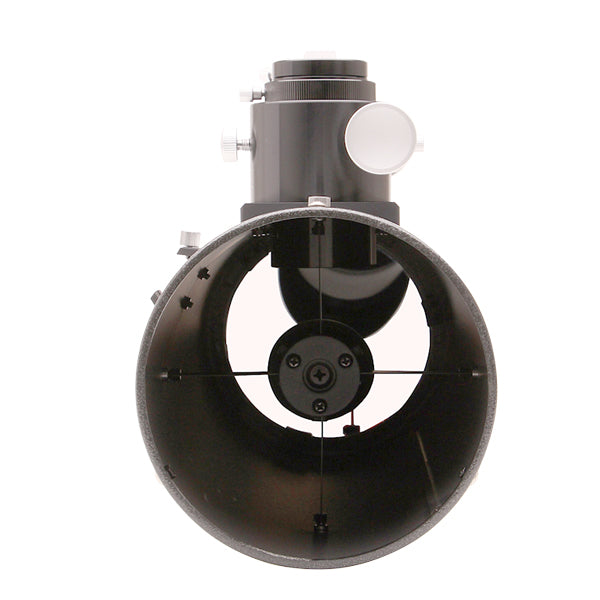

  The optics on all TPO Imaging Newtonians consist of a parabolic primary mirror and an elliptical secondary, or diagonal. The mirrors are made from B270 white water optical crown glass, which is more thermally stable than glass traditionally used on other reflectors. A 91% aluminum coating is applied, and then over-coated with a layer of quartz for ultimate durability. The primary mirror cell is very sturdy, and has six collimation knobs that can be adjusted by hand. Collimation is made even easier due to the center spot marked on the primary mirror. The diagonal mirror is held in place with a thin four-vane spider.

• specifications

  Aperture	154 mm (6")
  Camera/Eyepiece Connection	2" Nosepiece
  Dawes Limit	0.75 arcseconds
  Focal Length	610 mm
  Focal Ratio	f/4
  Highest Magnification	308x
  Light Gathering Power	484x
  Limiting Magnitude	14.7
  Optical Design	Newtonian
  Secondary Obstruction	63mm
  Tube Diameter	178mm
  Tube Length	572mm
  Tube Weight	9.6 lbs
  Warranty	2 Year Warranty

• included items

  • 2 Tube Rings.
  • 6X30 mm Straight-Through Finder with Bracket and Base.
  • 8-inch Vixen-Style Dovetail Rail.
  • 2-inch Extension Tube with 35 mm Extension.
  • Front Dust Cover.
